SparkFun Ambient Light Sensor - VEML7700 (Qwiic)

SKU: SEN-29211 Brand: Sparkfun
The SparkFun Qwiic VEML7700 Ambient Light Sensor provides accurate, 16-bit ambient light readings from 0 to 167,000 lux via the I2C interface. This...
Special Price $11.00 AUD, inc GST
Regular Price $13.30 AUD, inc GST
$10.00 AUD, exc GST
Special pricing ends 28 October 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Aug 08 and Aug 11

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

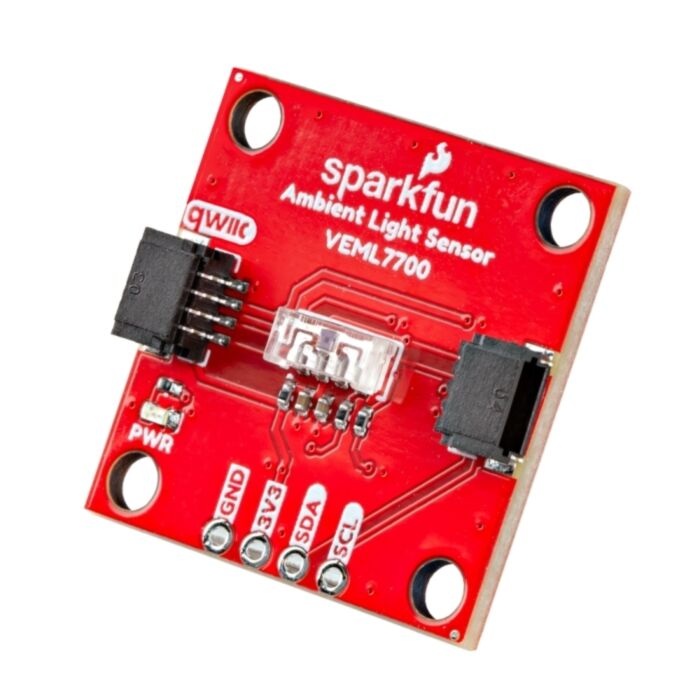

The SparkFun Qwiic VEML7700 Ambient Light Sensor provides accurate, 16-bit ambient light readings from 0 to 167,000 lux via the I2C interface. This miniature sensor (6.8mm x 3.0mm x 2.5mm) features a high-sensitivity photodiode, a low-noise amplifier, and a 16-bit analog-to-digital (A/D) converter. Its unshifted 7-bit I2C address is 0x10.

This Qwiic breakout board routes power (VDD/GND) and I2C signals (SDA/SCL) to two Qwiic connectors, plus a 0.1in.-spaced PTH header for both solderless and soldered applications. Sparkfun offer an Arduino Library and Python package to quickly convert raw sensor data into lux, with automatic compensation for gain and integration time.

Features & Specs

  • Filtron™ technology adaption: close to real human eye response
  • O-Trim™ technology adoption: ALS output tolerance = 10 %
  • 16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
  • 100 Hz and 120 Hz flicker noise rejection
  • Excellent temperature compensation
  • High dynamic detection resolution
  • Software shutdown mode control
  • High and low threshold windows with interrupt flags
  • Supply voltage:
    • 3.3V (TYP); 2.5V (MIN); 3.6V (MAX)
  • Typical current draw:
    • Shut down: 0.5µA
    • Refresh time 4100ms: 2µA
    • Refresh time 100ms: 45µA
  • I2C address: 0x10 (unshifted)
