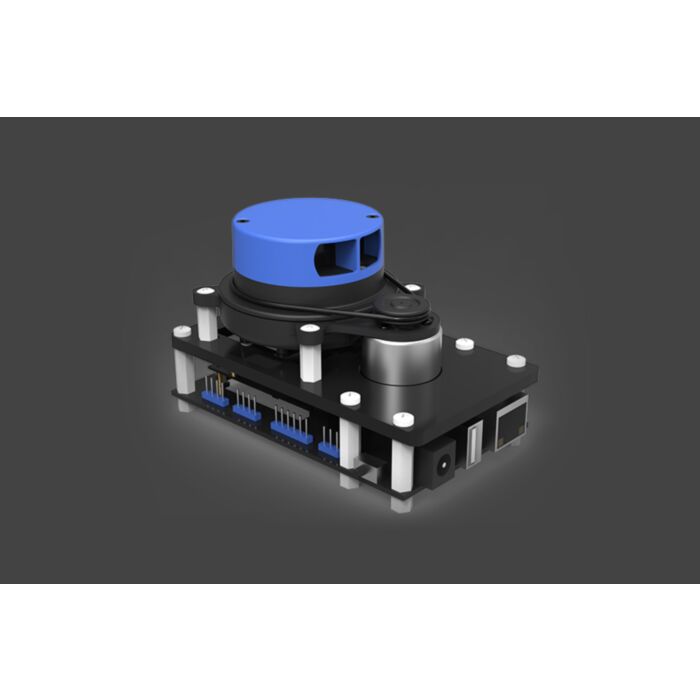

SLAMTEC MAPPER M1M1-360°Laser Mapping Sensor TOF 20m

SKU: DFR0628 Brand: DFRobot

SLAMTEC MAPPER M1M1-360°Laser Mapping Sensor TOF 20m is a new laser range scanner category with built-in mapping and localization feature

$1,224.95 AUD, inc GST

$1,113.59 AUD, exc GST

Quantity Discounts:

3+ $1069.05 (exc GST)
5+ $1035.64 (exc GST)

Out of Stock

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

Introduction

SLAMTEC MAPPER M1M1-360°Laser Mapping Sensor TOF 20m is a new laser range scanner category with built-in mapping and localization feature.

Slamtec Mapper, a new laser range scanner category integrating map building and real time localization and navigation, contains the SLAMTEC third generation high-performance SLAM engine and laser range scanner.

Plug and play, without any external dependence. It is suitable to be applied in application fields like robot localization and navigation, environment surveying and mapping and etc.

Large Scenarios and High-quality Mapping

Slamtec Mapper adopts SLAMTEC third generation high-performance SLAM graph optimization engine and SharpEdge™ mapping technology to realize a high accurate thousand-square-meter map building and real time localization, and it can actively detect the closed loop and correct map.

The mapper is an ideal choice for users to realize mapping and re-localization in various complicated scenarios and output map and localization data that meets users' expectations.

Plug and play, without any external dependence

Slamtec Mapper just needs a USB power cable to work well, without any additional support or accessories.

Tilting Compensation and Fast Moving

With built-in inertial navigation system with nine degrees of freedom, Slamtec Mapper can work properly in tilting and shaky hand-held mode and ensure an excellent map data quality. In addition, it supports to move fast with a maximum speed of 1m/s.

Indoor and Outdoor Availability

Whether in complicated indoor environment or outdoor environment with direct daylight, Slamtec Mapper shows a good performance in mapping and localization in those complicated scenarios.

Fully Compatible with ROS, Easy Data Analysis

Slamtec Mapper provides completed cross-platform SDK and tools both on phone and PC side for users to evaluate, develop and use.

Through matched ROS driver, you can integrate the generated map and localization data into ROS environment seamlessly.

More Than A Mapper

Slamtec Mapper is not only a mapper for mapping and localization, you can also use it directly as a laser range scanner. Via SDK or ROS node, you can easily put the data of the laser range scanner into the user's current system.

Built-in WIFI, Ethernet port, Easy communication

With built-in access point and station mode WiFi as well as 100M Ethernet port, you can get the real time map and localization data generated by Slamtec Mapper through designed mobile application.

Specification

Distance Range: 20m
Sample Rate: 7K
Max Mapping Area: 300m x 300m
Resolution: 5cm
Max Moving Speed: 1m/s
Max Rotate Speed: TBD
Re-localization Accuracy: <0.02m
Map Optimization Duration: About 1 hour
Slope Angle: ±3°
Data Refresh Rate: 8Hz

Shipping List

SLAMTEC MAPPER M1M1-360°Laser Mapping Sensor TOF 20m x1
