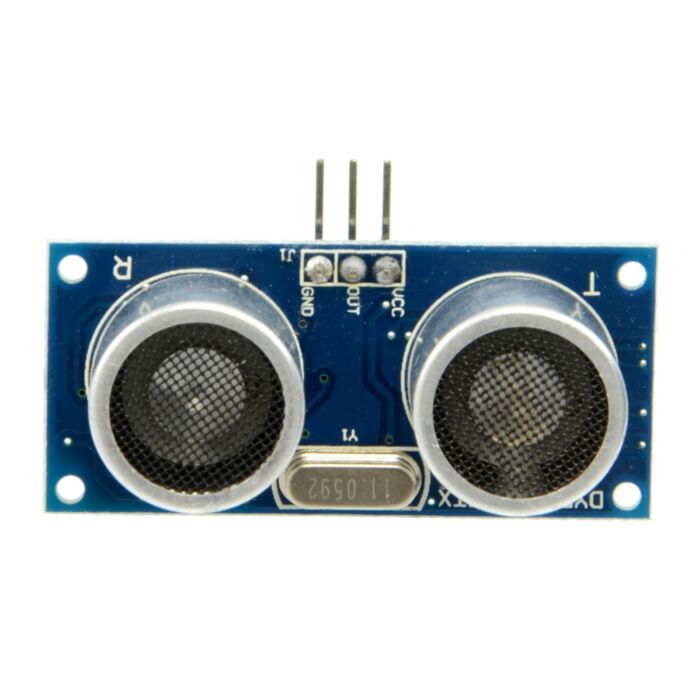

    Serial Non-contact Ultrasonic Motion / Distance Sensor Module

    SKU: 017-MB-SM19115

    $16.11 AUD, inc GST

    More Views

    Serial Non-contact Ultrasonic Motion / Distance Sensor Module

    SKU: 017-MB-SM19115

    $16.11 AUD, inc GST

    Retired Product

    This product has been retired and kept here for reference.

    This item is a high performance, cost-effective non-contact distance sensor module, measuring range of 0.02 ~ 4.00m, accuracy 1cm. Measurement is done without direct contact with the measured object. It can clearly show a steady measurement results.

    Features:

    • Size: 46mm(L)* 21mm(W)* 15mm(H) ± 0.2mm
    • Outputs UART data every 50mS with distance info (9600,n,8,1 format). See the user guide linked below.
    • Small,easy to use
    • Low voltage, low power consumption
    • Wide measurement range
    • High accuracy
    • With temperature compensationApplication
    Specification
    Value
    Operating Voltage
    DC 5V
    Operating Current
    10mA
    Frequency
    40KHz
    Range
    2cm-4m
    Communication Format
    9600,n,8,1
    Response time
    100MS
    Accurcy
    1cm
    Angle
    <30 degree
    Operating Temperature
    -10 to 60℃
    Storage Temperature
    -20 to 80℃


    Applications:

    • Water ranging occasions
    • Measuring the distance between objects
    • Obstacle avoidance program-controlled car
    • Teaching apparatus
    • Security, industrial control

    Package content:

    • Ultrasonic module Motion Detector Sensor Module Security Non-contact Serial Output x 1
