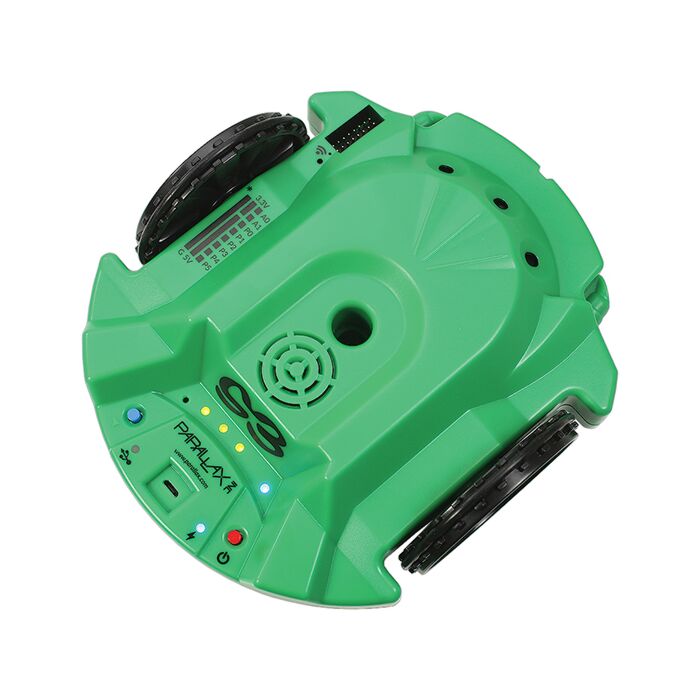

Scribbler S3 Robot

SKU: ROB-16039 Brand: Sparkfun

Retired Product

This product has been replaced by: Scribbler S3 Robot
This product is no longer available. This page is only for reference.

The Scribbler 3 (S3) robot is the perfect place for students and teachers to begin their STEM/STEAM journey. The robust, easy-to-use S3 robot is simple enough to set up in minutes, and is powerful enough to teach engaging activities throughout the school year. Programming, robotics, and even integrating math and art are all possible with the S3.

The BlocklyProp online tool is the S3 robot’s primary programming environment. Its interlocking blocks with readable text let beginners build programs in an intuitive, visually logical way. The BlocklyProp tool exposes the S3’s encoders to provide control over distance and speed for all possible types of movement. Pre-made blocks support all of the S3 robot’s sensors, motors. In addition, blocks are included for select accessories that plug into the S3’s Hacker Port.

Includes

1x Scribbler S3 Robot, fully assembled
1x S3 Li-Po Battery
1x USB micro-B programming/charging cable

Features

Free BlocklyProp graphical online programming on Chromebook, Windows, and Mac
Fully assembled with a durable shell
8 pre-programmed play modes let your Scribbler interact with you, right out of the box
Built-in sensors for line following, light seeking, object avoidance, and stall sensing
DC motors with encoders allow for detailed scribbling, maze navigation, and distance control.
Integrated pen port fits standard Sharpie pens or Board Dudes SRX Dry Erase Markers
Speaker plays robot-generated musical notes and sound effects
Hacker Port gives access to 5 digital I/O pins, two analog pins, 3.3V, 5V, and ground
Silicone o-ring tires provide good traction without leaving marks
S3 Li-Po Battery and Programming/Charging Cable included
Processor: Multicore Propeller P8X32A
Light sensors: 3 phototransistors
Line sensors: 2 infrared emitter/receiver pairs, unmodulated
Object sensors: 2 alternating infrared emitters and one receiver, modulated
Stall sensors: Motor current monitor, and drive wheel/tail wheel rotation comparison
Wheel diameter: ~ 8 cm
Drive wheel encoder resolution: 507.4 counts per revolution
Power requirements: 3.7 V; 4000 mAh Li-Po battery, included
Communication: Serial over USB to computer, cable included
Dimensions: 7.4 x 6.25 x 3.2 in (188 x 158.8 x 81 mm)
Operating temperature range:+50 to +104 °F(+10 to +40 °C)
