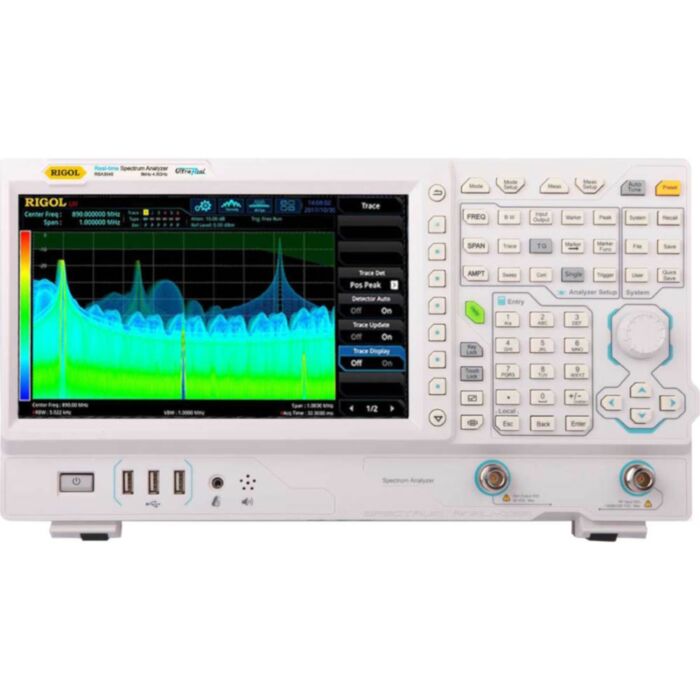

Rigol RSA-3030N Spectrum Analyzer

SKU: RSA3030N Brand: Rigol

A high‑performance, real‑time spectrum analyzer engineered for comprehensive RF analysis with an integrated vector network analyzer (VNA).

$9,950.00 AUD, inc GST
$9,045.45 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 14 and Apr 21

Quantity Discounts:

  • 3+ $8864.55 (exc GST)
  • 6+ $8683.64 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The RSA‑3030N from Rigol is a high‑performance, real‑time spectrum analyzer engineered for comprehensive RF analysis. With a frequency range extending from 9 kHz up to 3 GHz and up to 40 MHz of real‑time analysis bandwidth, this instrument delivers exceptional sensitivity and speed. Its integrated vector network analyzer (VNA) function and advanced triggering options.

Features

  • Ultra‑Real Technology – Captures signals with 100% probability of intercept for events as short as 9.3 µs, ensuring no signal is missed.
  • Exceptional Sensitivity – Achieves a displayed average noise level (DANL) as low as –161 dBm (typical) and phase noise below –102 dBc/Hz, with level measurement uncertainty under 1.0 dB.
  • Advanced Measurement Capabilities – Features a minimum resolution bandwidth (RBW) as low as 1 Hz (with 1 Hz option) and supports multiple measurement modes including density, spectrogram, and various trigger masks.
  • Integrated VNA & Tracking Generator – The built‑in vector network analyzer function enables S‑parameter (S11, S21) and distance‑to‑fault (DTF) measurements, while the 4.5 GHz tracking generator covers a frequency range from 100 kHz to 3 GHz.
  • User‑Friendly Interface – Enjoy seamless operation with a 10.1‑inch capacitive multi‑touch screen (1024×600 pixels) that supports gesture controls, along with comprehensive connectivity via USB, LAN, HDMI, and GPIB.

Specifications

  • Frequency Range: 9 kHz to 3 GHz
  • Real‑Time Bandwidth: 10 MHz standard
  • Resolution Bandwidth: 1 Hz to 3 MHz
  • DANL: Down to –161 dBm (typical, with optional preamplifier)
  • Display: 10.1" capacitive multi‑touch screen (1024×600 pixels)
