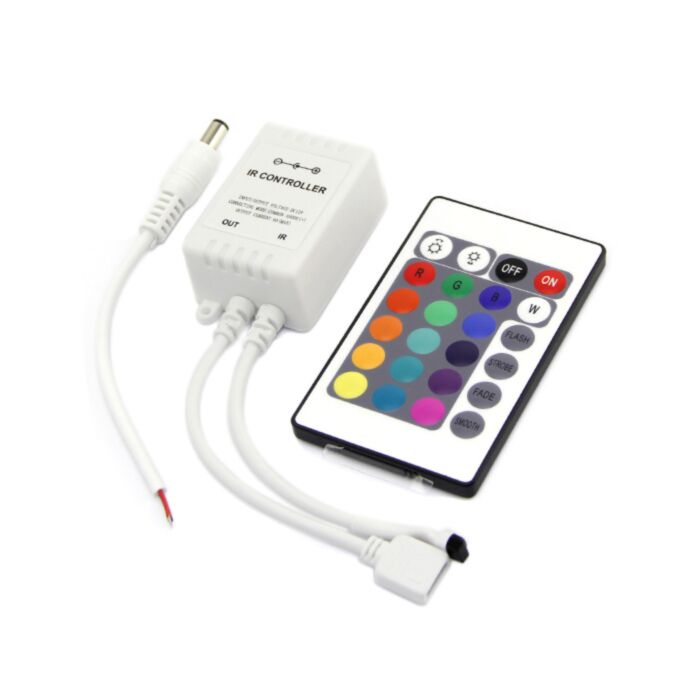

RGB Controller (Seeed Studio)

SKU: SS113990033 Brand: Seeed Studio

Retired Product

Replaced by: RGB Controller
This product has been replaced by: RGB Controller
This product is no longer available. This page is only for reference.

The RGB Controller which include the advanced micro control unit allows user to wireless control a number of different types of LED products in a very quick and simple way. The LED products include but not limited to LED lights , LED strip, LED wall washer lamp, glass curtain wall light, LED module, etc.

There are a various of blinking effects fro users to choose, such as hopping changing, gradually lighting changing or strobe flash, etc.

As the RGB Controller contains only the panel and controller, you may consider to pick our Flexible LED Strip - RGBorFlexible Waterproof LED Strip - RGB to complete the projects.



Specification

  • Voltage: DC 12V

  • Size: 64 x 34.5 x 22.5 mm

  • Remote Distance: 8m

  • Current: 2A x 3

  • Work Temperature: -20~60°C

  • Connecting mode: Common anode



Pattern Table

Brightness
+
Brightness
-
OFFON
Static RedStatic greenStatic blueStatic white
Static rose redStatic light greenStatic sapphire blue3 colors jumpy
Static orangeStatic green blueStatic violet and grey3 colors gradual
Static light yellowStatic sky blueStatic brown and purple7 colors gradual
Static yellowStatic cyanStatic purple7 colors jumpy


Operating

You can use the remote control panel to operate controller.

  • Press “ON” Button in Shutdown condition, the controller will return to the mode before power off.

  • Press “OFF” Button will turn the controller off in any mode.

  • Please refer to model 1 to model 24.


Warning

  1. The input voltage should align with the specifications’, higher than the default setting could cause potentially dangerous

  2. The 4-wires coming out of the controller should be connect appropriately or otherwise a short circuit would occur.

  3. Connect the wires of the controller and LED fitting as per the instruction.

  4. Don't peel off any labels on the controller in case any indication information were be missed.

  5. Any special, indirect, consequential, incidential or secondary damages and liabilities caused by or arising out of any reason shall be burden by the people who use it.
