RF Explorer 4G Combo PLUS - Slim (Seeed Studio)

SKU: SS114992146 Brand: Seeed Studio

RF Explorer 4G COMBO+ is a powerful Spectrum Analyzer, covering the full range starting at 50KHz up to 4GHz with no gaps or limitations. A future firmware license feature will allow it to expand the range up to 5.1GHz.

$554.95 AUD, inc GST

$504.50 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 12 and Dec 16

Quantity Discounts:

3-5 $484.32 (exc GST)
5+ $469.18 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

When compared to the standard 3G Combo model, the new SLIM design offers an outstanding robust enclosure with a strong metallic body and shiny varnished paint, additional frequency coverage, and power sensitivity, a more convenient USB connector on the side and larger internal battery capacity.

What is an RF Explorer Spectrum Analyzer?

An RF Explorer Spectrum Analyzer is a special device designed to detect very sensitive signal radiation and identify signal interference, tune antenna setups, detect signal leakage and find hidden bugs, among many other applications.
The combination of small size, great sensitivity, and robust design makes it the ideal instrument to carry on for indoor and outdoor measurements.

When connected to a computer, it can be controlled by free software available for download with stunning high-resolution graphics, data storage, and reply features.

How RF Explorer Works?

For introductory details and quick start guide, please visit www.rf-explorer.com/start

For best handling work at the desk, we recommend the RF Explorer Holder SLIM

For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit

Tip: To learn more about the RF Explorer product family, don't forget to check Seeed Studios blog Introducing RF Explorer Spectrum Analyzer Product Family.

Features

Internal LNA amplifier and selectable attenuator for additional power range handling.
Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
High-frequency support covering all ranges up to 4GHz with no gaps.
New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
Ideal choice for all usable HAM bands.
Pocket size and lightweight
Solid metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Specifications

Frequency band:

Left connector: 0.05 – 960MHz
Right connector: 240 – 4000MHz

Frequency span in a single sweep: 2 – 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuators 30dB and 60dB
Wifi Analyzer for the 2.4GHz band
Graphics LCD 128x64 pixels, great visibility outdoors
Backlight for great visibility indoor
Internal Lithium-Ion 1800mA/h rechargeable battery
Standard SMA 50 ohms connectors
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
2.4GHz whip antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +-1.0ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Support included for Windows, Linux and MacOS X

Applications

RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
WiFi analysis and fine-tuning
Interference hunting
EMC pre-testing
RF device tuning (with Signal Generator working as Tracking SNA): Check this link for more details

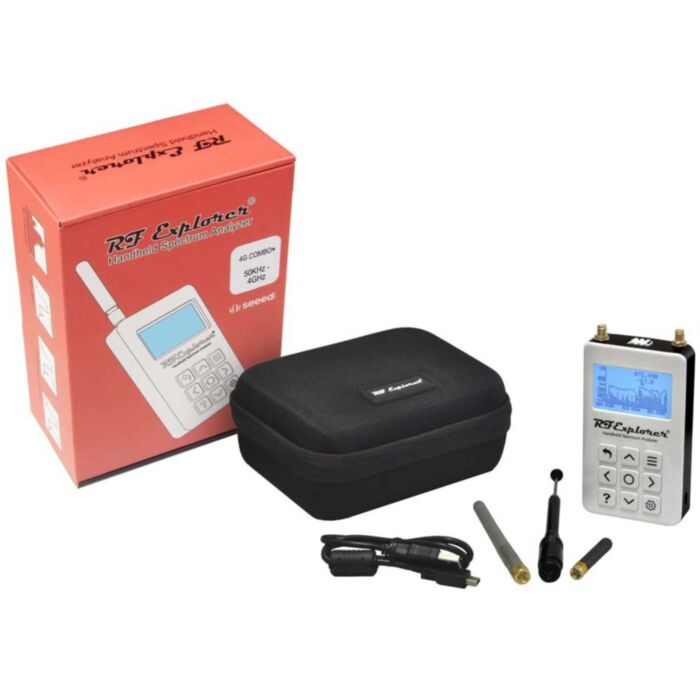

Parts List

1 x Spectrum Analyzer
1 x Mini USB cable
1 x Dual band 144/430MHz Telescopic antenna
1 x UHF 400-900Mhz antenna
1 x 2.4GHz whip antenna
1 x EVA case

Downloads
