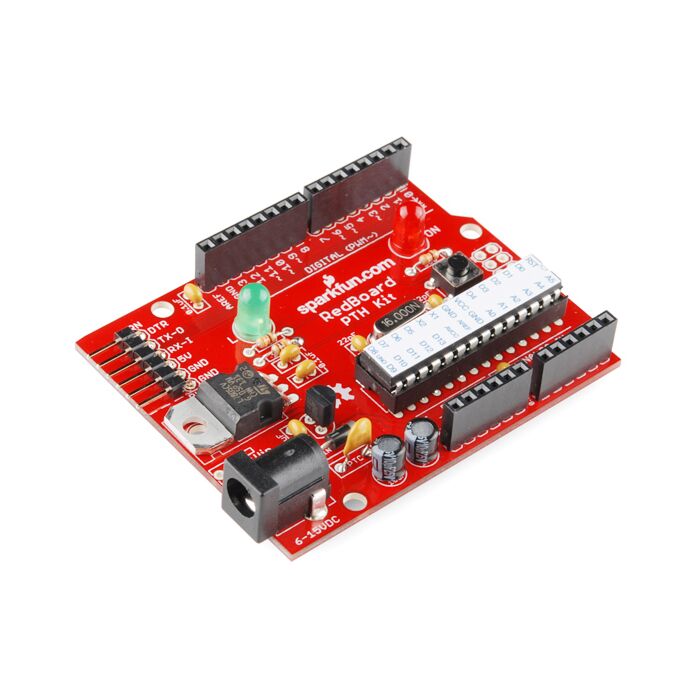

RedBoard - PCB Add-on for Breadboard Kit

SKU: DEV-10909

$19.03 AUD, inc GST
$17.30 AUD, exc GST

More Views

RedBoard - PCB Add-on for Breadboard Kit

SKU: DEV-10909

$19.03 AUD, inc GST
$17.30 AUD, exc GST

Retired Product

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

Have you already built your RedBoard Breadboard Kit but want to make it more permanent? This kit allows you to take all of the parts you already have from the RedBoard Breadboard Kit and, with some through-hole soldering, turn them into a shield-compatible development board!

Note: This kit is intended as an add-on to the RedBoard Breadboard Kit. If you don’t have the parts from that kit, you will not be able to complete this one. If you haven’t made the breadboard version and want to skip straight to the through-hole kit, check out the RedBoard PTH Kit below.

Kit Includes:

  • 1 x SparkFun Red PCB
  • 1 x MCP1700 3.3V Voltage Regulator
  • 1 x Diode 1N4001
  • 1 x Resettable Fuse PTC
  • 1 x 28-Pin DIP Socket (To seat your ATMega)
  • 1 x Push Button Reset Switch
  • 2 x 6-Pin Female Headers
  • 2 x 8-Pin Female Headers
  • 1 x 6-Pin Right Angle Header (To connect your FTDI Basic)
  • 1 x 0.1uF Capacitor
  • 1 x DC Barrel Jack

Documents:

Replaces:DEV-10522
