Raspberry Pi Touch Display 2 - 7" 720x1280 with Capacitive Touch

SKU: ADA6079 Brand: Adafruit

Retired Product

Replaced by: CE09978

This product has been replaced by: CE09978
This product is no longer available. This page is only for reference.

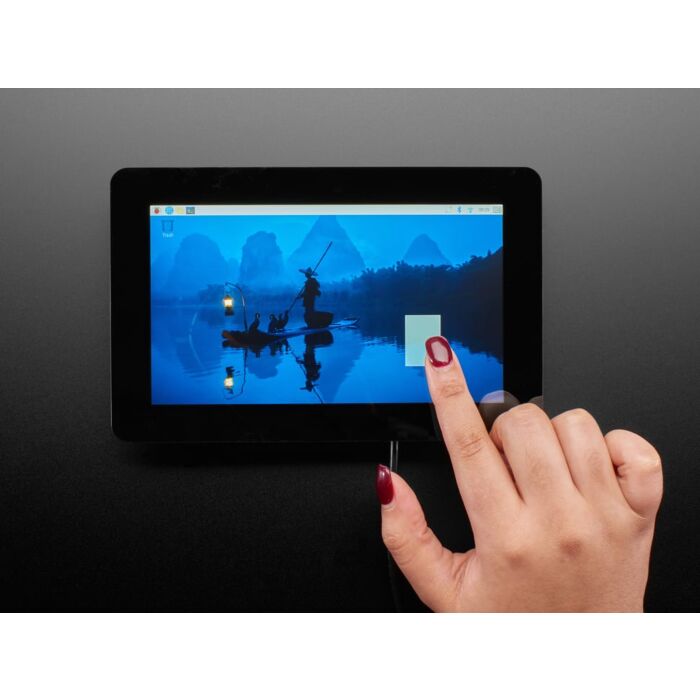

Raspberry Pi Touch Display 2 is the sequel to the popular Raspberry Pi Official Display. Like the original, it's a 7'' touchscreen display for Raspberry Pi. Unlike the original, it has a much higher quality IPS TFT screen, the same kind used on tablets. That means it looks great at any angle, and it has much higher resolution too, 1280x720 rather than 800x480! It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse. No coding or special drivers required, everything works out of the box if you're running the latest Pi OS.

Only two connections are required to connect the 720x1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line. The Pi can be mounted on the back for a cute all-in-one setup.

The display can be configured for portrait or landscape mode. Check out the installation guide for how to get started fast. No tools are required, it's plug-and-play easy!

This embedded content is from a site (www.youtube.com, flickr.com, etc) that does not comply with the Do Not Track (DNT) setting now enabled on your browser.

Clicking through to the embedded content will allow you to be tracked by the embed provider.

Technical Details

Specifications:

Size: 189.32mm × 120.24mm
Display size (diagonal): 7 inches
Display format: 720 (RGB) × 1280 pixels
Active area: 88mm × 155mm
LCD type: TFT, normally white, transmissive
Touch panel: True multi-touch capacitive touch panel, supporting five-finger touch
Surface treatment: Anti-glare
Color configuration: RGB-stripe
Backlight type: LED B/L
Production lifetime: The touch display will remain in production until at least January 2030
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
