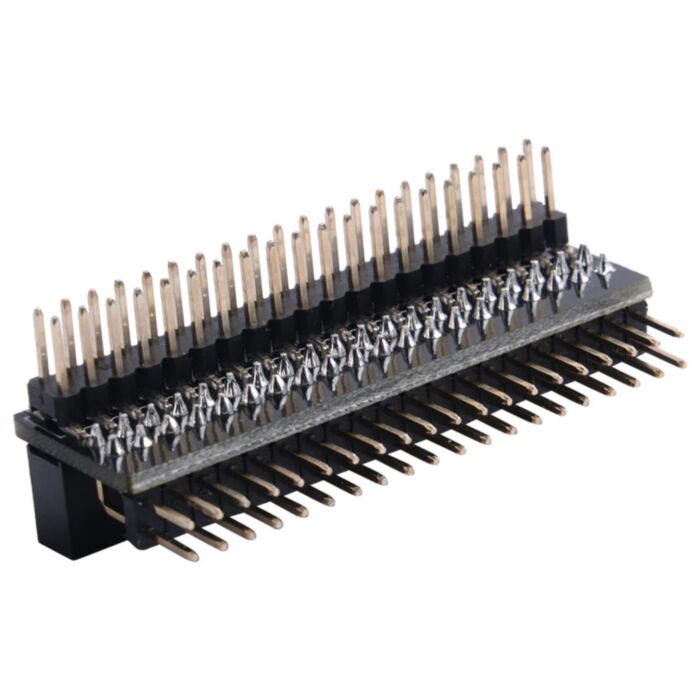

Raspberry Pi Dual-Access GPIO Extension Board

The GPIO Edge Extension Board offers enhanced accessibility and flexibility for Raspberry Pi projects by providing both vertical and horizontal GPIO pin access. This dual-access design revolutionises how sensors, displays, and other hardware components can be connected to any 40-pin Raspberry Pi, making it an invaluable tool for development and prototyping.

• Dual-access design with both vertical and horizontal GPIO headers
• Compatible with all 40-pin Raspberry Pi models including Pi 5, 4, 3B+, 3A+, 3, 2, B+ and Zero family
• Direct pin duplication without software control - perfect for power distribution
• Simplified access to GPIO pins in space-constrained environments
• Ideal for custom enclosure designs and hardware prototyping

Installation is straightforward - simply align the extension board with your Raspberry Pi's GPIO pins and press firmly to ensure a secure connection. The horizontal pins provide alternative access points for components, while the vertical pins maintain compatibility with standard HATs and add-on boards.

For expanded connectivity, combine with a Raspberry Pi GPIO 40-Pin Ribbon Cable to extend your GPIO connections further. When using the duplicated pins, remember that each pair shares the same connection - they cannot be used for different functions simultaneously.

• 40-pin GPIO extension (2x20 pin configuration)
• Dual header layout: vertical and horizontal orientation
• Direct pin-to-pin electrical connection
• No active components or software required
• Compatible with 3.3V and 5V GPIO operations

• 1x GPIO Edge Extension Board

• Product Wiki with detailed pinout information and usage guidelines
