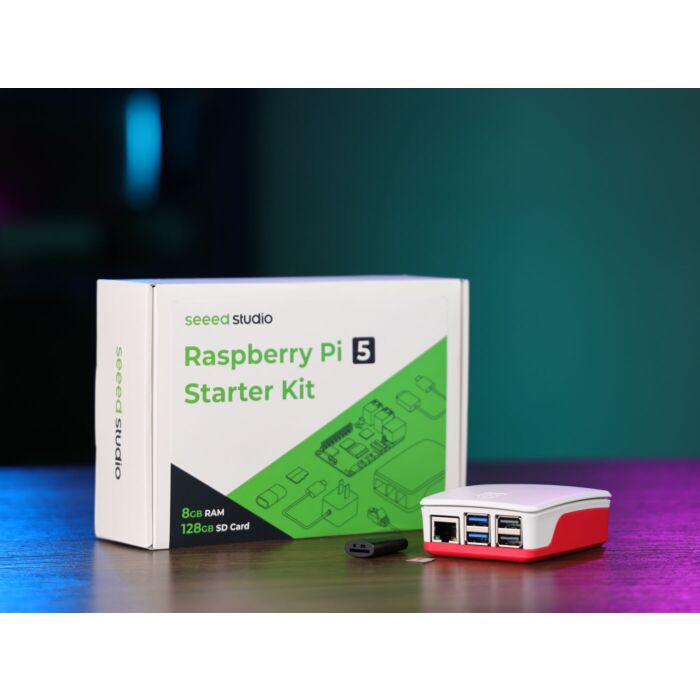

Raspberry Pi 5 Maker's Kit - 8GB with Cooling Case

SKU: SS114993414 Brand: Seeed Studio

Retired Product

Replaced by: CE09799
This product has been replaced by: CE09799
This product is no longer available. This page is only for reference.

Experience unparalleled computing power with the Raspberry Pi 5 Maker's Kit, featuring the latest 8GB model complemented by essential accessories for immediate project deployment. This comprehensive kit combines the groundbreaking performance of the Raspberry Pi 5 with thoughtfully selected components, creating a complete development platform suitable for everything from advanced robotics projects to sophisticated machine learning applications.

Key Features

  • Powerful 2.4GHz quad-core 64-bit ARM Cortex-A76 CPU delivering 3x faster performance than previous generations
  • 8GB LPDDR4X-4267 SDRAM for seamless multitasking and complex computations
  • Dual 4Kp60 HDMI display outputs with HDR support for sophisticated visual applications
  • VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2 for advanced graphics processing
  • Pre-installed Raspberry Pi OS on a 128GB Micro SD card for immediate deployment
  • Official active/passive cooling case ensuring optimal thermal management
  • 27W USB-C PD power supply providing stable, efficient power delivery

Technical Specifications

Connectivity

  • Dual-band 802.11ac Wi-Fi and Bluetooth 5.0/BLE
  • Gigabit Ethernet with PoE+ support (requires separate PoE+ HAT)
  • 2 × USB 3.0 ports supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • PCIe 2.0 x1 interface for expandability
  • Standard 40-pin GPIO header

Display and Media

  • 4Kp60 HEVC decoder
  • 2 × 4-lane MIPI camera/display transceivers
  • Dual 4K HDMI outputs

How to Use

Getting started with the Raspberry Pi 5 Maker's Kit is straightforward:

  1. Install the Raspberry Pi 5 into the provided cooling case following the included instructions
  2. Connect the pre-loaded 128GB MicroSD card
  3. Attach the included HDMI and network cables
  4. Connect the official 27W power supply
  5. Power on and begin development with the pre-installed Raspberry Pi OS

What's in the Box

  • Raspberry Pi 5 8GB board
  • Official Raspberry Pi 5 case with active cooling fan
  • Official 27W USB-C PD power supply (US version)
  • 128GB MicroSD card with pre-installed Raspberry Pi OS
  • USB MicroSD card reader
  • Micro HDMI to HDMI cable (1.5M)
  • High-quality network cable (1.5M)

Compatibility

The kit is optimised for the latest Raspberry Pi OS and supports a wide range of operating systems including:

  • Raspberry Pi OS (32-bit and 64-bit)
  • Ubuntu and other Linux distributions
  • Specialised distributions for robotics, machine learning, and multimedia applications

Additional Resources

  • Access to Seeed Studio's 1-year quality guarantee
  • Full-time technical support
  • Comprehensive documentation and community resources

About Seeed Studio

Seeed Studio is a leading provider of open-source hardware solutions, specialising in development boards, sensors, and maker education products. With a commitment to quality and innovation, they deliver reliable solutions backed by comprehensive support and a vibrant community of developers and educators worldwide.
