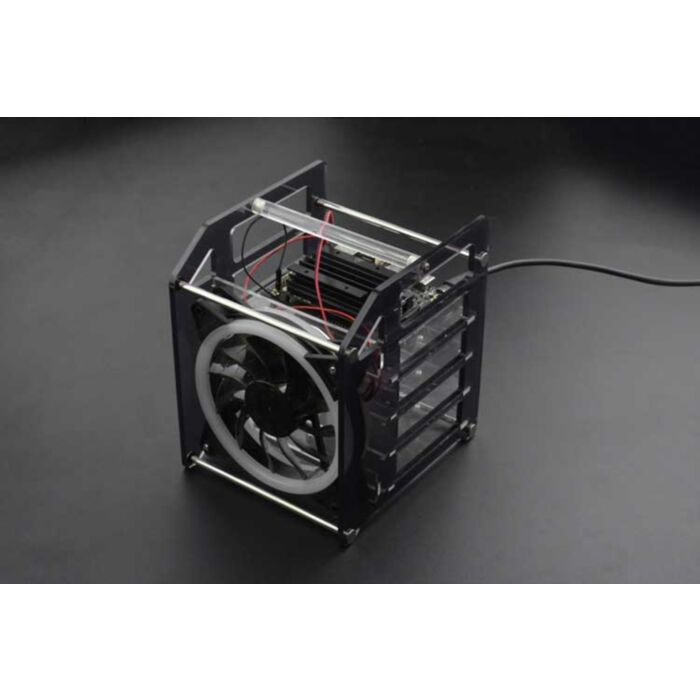

Rack Tower for Raspberry Pi 4B/ 3B & Jetson Nano

SKU: FIT0775 Brand: DFRobot

Rack Tower stands for a new concept for the 4-layer acrylic case for the cluster. This 4-layer acrylic oversized fan enclosure is a new product designed to provide...

$71.75 AUD, inc GST

$65.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 22nd of Apr

Quantity Discounts:

6+ $62.62 (exc GST)
12+ $60.66 (exc GST)

Rack Tower stands for a new concept for the 4-layer acrylic case for the cluster.

This 4-layer acrylic oversized fan enclosure is a new product designed to provide shell protection and cooling solutions for Raspberry Pi clusters, Raspberry Pi NAS servers, Jetson Nano clusters, and disk array clusters.

It is very delicate. The long fixing screws are designed with flat head screws, smooth and easy to install.

The fool-proof design of the positioning holes can prevent you from having trouble during installation.

In addition, the Micro SD can help us solve the problem that the Raspberry Pi can't plug into the SD card after the installation.

A variety of screws with different Specifications can meet your various product fixing needs.

For example, Raspberry Pi, 2.5-inch hard drive, Jetson Nano, and so on.

In addition, the large fan is driven by 5V, which can be directly powered by the Raspberry Pi, and it will have a colorful halo when it is running, which is very cool.

Features

Easy to assemble
Colorful LED Huge Fan
Compatible with Raspberry Pi, 2.5MM HDD, Jetson Nano
Extremely heat dissipation effect
Crystal Hander easy to carry on
Flexible Mounting position

Specification

Fan operating voltage:5V

Parts List

Right baffle x1
Left baffle x1
Middle interlayer x4
Fan bracket x2
125mm Acrylic cylinder x1
130mm Male and female rivet x4
M3x8mm Screw (for handle) x2
120mm RGB LED 5V fan x1
M3x30mm screw (for 120mm Fan) x4
M3 nut (for 120mm fan) x4
M2.5x5+6mm copper column(for RPi) x17
M2.5 nut (for middle interlayer) x17
M3x5 wide head screw(for 4 hard disks) x16
Long transparent screwdriver x1
Heat sink Kit for Raspberry Pi 4B x4
Heat sink Kit for Raspberry Pi 3B x4

Documents

Installation instructions
