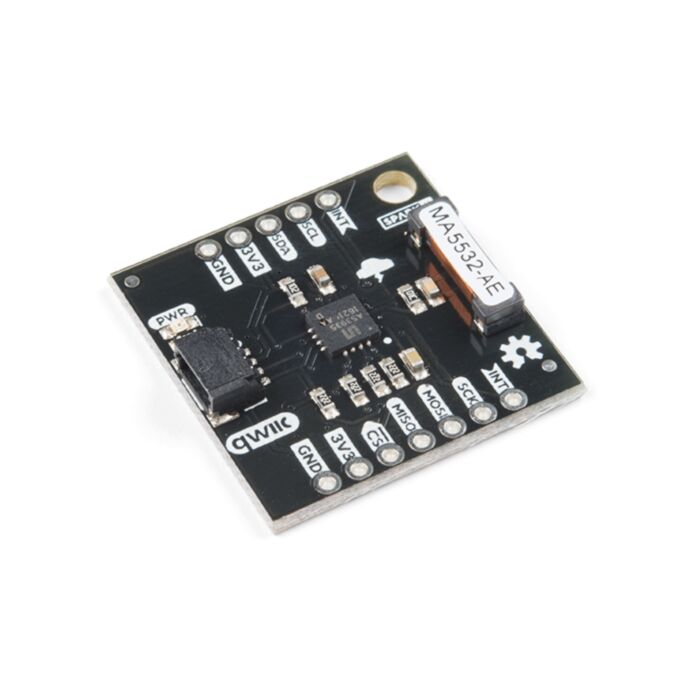

Qwiic AS3935 Lightning Detector

SKU: SPX-15057 Brand: Sparkfun

Retired Product

Replaced by: SEN-15441

This product has been replaced by: SEN-15441
This product is no longer available. This page is only for reference.

The AS3935 Franklin Lightning Detector gives you lightning detection for your next weather project. This sensor is capable of detecting lightning up to 40 km away with an accuracy of 1km to the storm front! On the product is a sensitive antenna tuned to pick up lightning events in the 500kHz band. When sensing an event the AS3935 is able to distinguish between false and real lightning events and has a number of features to help calibrate lightning detection. For example, there are settings for detecting from indoors or detecting from outdoors, settings to change the threshold for false events, and settings to be alerted only after a certain number of lightning strikes to name a few.

The product is capable of communicating over SPI or I²C and sports a Qwiic connector for fast implementation without the need for soldering.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Features

Lightning Sensing
- 40 km Range
- 1 km in 14 steps accuracy
Features
- Programmable Detection Levels
- Distance to storm estimation
- “Disturber” (false event) rejection algorithm
- Indoor and Outdoor Settings
- SPI and I2C Interfaces
- Qwiic Enabled
Operating Range
- Supply Voltage: 2.4V - 5.5V

Documents
