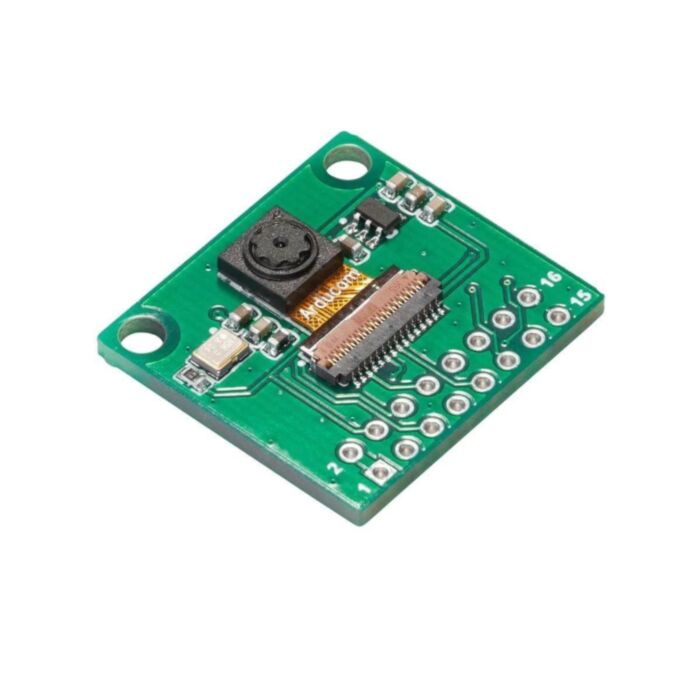

QVGA SPI Camera Module for Raspberry Pi Pico (HM01B0)

SKU: CE08471 Brand: The Pi Hut
The Arducam HM01B0 is a camera module designed specifically for the Raspberry Pi Pico featuring ultra-low power consumption, up to QVGA resolution, 1-bit...
$35.05 AUD, inc GST
$31.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $30.91 (exc GST)
  • 25+ $30.27 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Arducam HM01B0 is a camera module designed specifically for the Raspberry Pi Pico featuring ultra-low power consumption, up to QVGA resolution, 1-bit video data interface and line sync!

This, along with other specs, makes it the perfect camera for building machine vision projects and Always on Service applications with energy-efficient MCUs. It’s designed specifically for Raspberry Pi Pico and other third party RP2040 dev boards. It’s also the built-in camera of the Arducam Pico4ML!

We also offer an alternative version that offers VGA resolutions.

Note: Pin headers and jumper wires not included

Specifications

  • Ultra-Low Power Image Sensor designed for Always-on vision devices and applications
  • High sensitivity 3.6µ BrightSenseTM pixel technology
  • 324 x 324 active pixel resolution with support for QVGA window, vertical flip and horizontal mirror readout
  • <1.1mW QQVGA resolution at 30FPS, < 2mW QVGA resolution at 30FPS
  • Programmable black level calibration target, frame size, frame rate, exposure, analog gain (up to 8x) and digital gain (up to 4x)
  • Automatic exposure and gain control loop with support for 50 / 60Hz flicker avoidance
  • Flexible 1-bit, 4-bit and 8-bit video data interface with video frame and line sync
  • Motion Detection circuit with programmable ROI and detection threshold with digital output to serve as an interrupt
  • On-chip self oscillator
  • I2C 2-wire serial interface for register access
  • CSP and Bare Die sensor package option
  • High CRA for low profile module design
  • Datasheet

Resources

Package Contents (Box size 42mm x 18mm x 56mm)

  • 1 x Arducam HM01B0 camera module
  • Jumper wires
  • Manual
