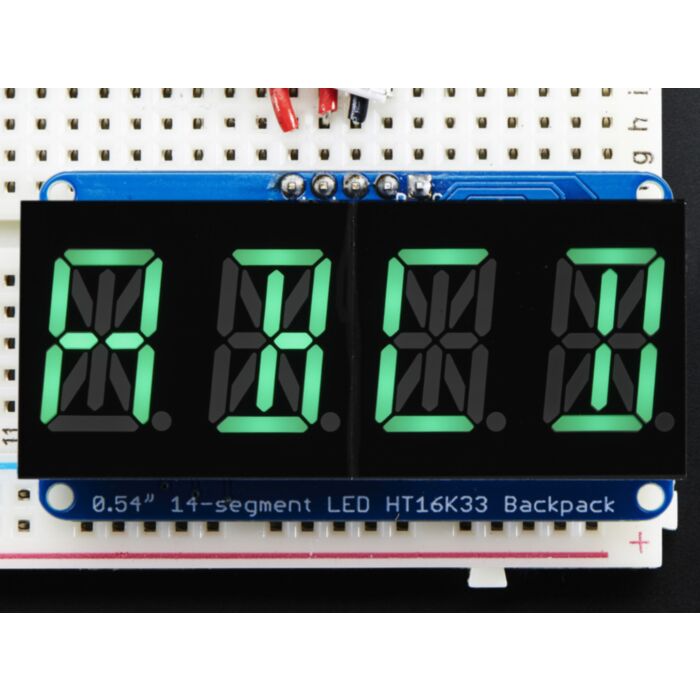

Quad Alphanumeric Display - Pure Green 0.54 Digits w/ Backpack

SKU: ADA2160 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point. This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful pure green hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Digits have seven white segments on a black surface and Adafruit give you a set of two alphanumeric displays as well as a driver board so you can make a clock or a four letter word.

Like Adafruit's other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

This product comes with:

2 x Ultra-Bright Pure Green Alphanumeric Display - 0.54" Digit Height for 4 digits total
1 x Adafruit 14-segment LED Alphanumeric Backpack
1 x 5-pin header

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes. Of course, in classic Adafruit fashion, We also have a detailed tutorial showing you how to solder, wire and control the display. If you've been eying alphanumeric displays but hesitated because of the complexity, this is the solution you've been looking for!

Click here for the version that's just the alphanumeric displays! (no backpack)

Technical Details

Alphanumeric Display Dimensions:

21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
Height w/ Pins: 14mm / 0.6"
Weight: 4.7g

Backpack Dimensions:

28mm x 51mm x 4mm / 1.1" x 2" x 0.2"
Weight: 5.5g

EagleCAD PCB files, datasheets, Fritzing objects and more in the tutorial
