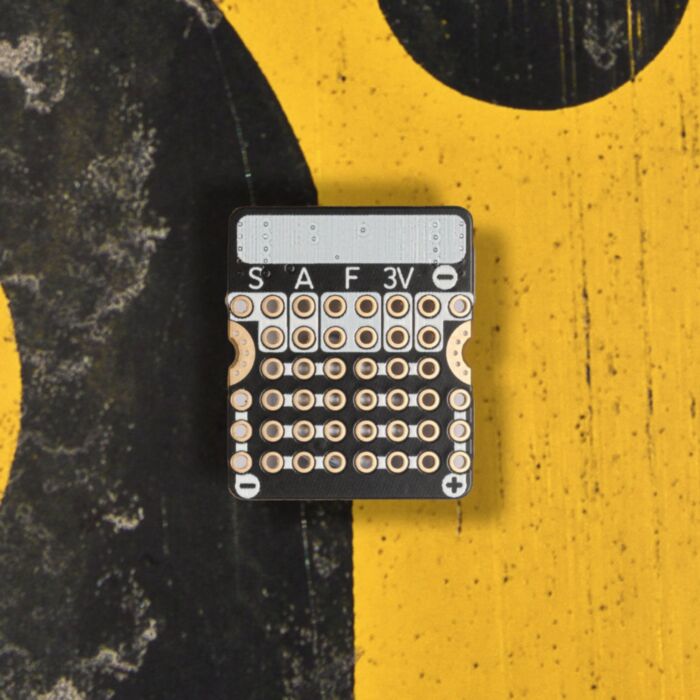

Proto Module for Yukon

SKU: PIM698 Brand: Pimoroni
Create your own custom Yukon modules with this handy prototyping module...
$9.20 AUD, inc GST
$8.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 15

Quantity Discounts:

  • 10-25 $8.03 (exc GST)
  • 25+ $7.78 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Create your own custom Yukon modules with this handy prototyping module.

Features
  • All Yukon slot IO and power exposed via 0.1" spaced pads
  • 6 x 4 prototyping area
  • Board area for writing module name
  • Fully-assembled
  • Compatible with Pimoroni Yukon
SoftwarePinout and Schematic

Notes
  • Measurements: 24mm x 20mm x 5.3mm (L x W x H).
About Yukon

Yukon is a high-power modular robotics and engineering platform, built around Raspberry Pi's formidable RP2040 chip. It has slots for attaching interchangeable hardware modules for driving combinations of devices such as motors, servos, steppers, and LED strips, all from one board!

Featuring an XT30 connector, Yukon can be directly powered off 2 to 4 cell LiPo batteries (or any other 5 to 17V source), to deliver up to 15A continuous for your high-power projects. An e-Fuse with switchable output protects the board, along with voltage, current, and temperature sensors that can be monitored by your programs.

View all Yukon!

This product is listed in:

Prototyping>Proto Boards
Robotics>Yukon
