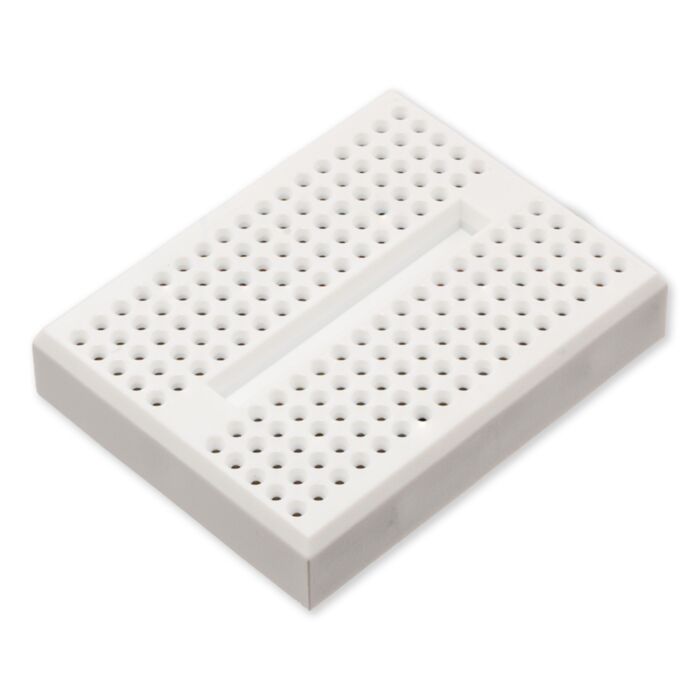

Professional Mini Solderless Breadboard BB170 - 170 Tie Points (White)
Compact 170-tie-point breadboard with phosphor bronze contacts rated for 50,000 insertions.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Quantity Discounts:
- 10+ $6.80 (exc GST)
- 25+ $6.51 (exc GST)
A micro-sized prototyping platform built to last. This 170-tie-point solderless breadboard packs quality phosphor bronze contacts into a compact footprint, giving you a reliable foundation for quick circuits, add-on modules, and space-constrained prototypes.
Cheap breadboards lose their grip after a few hundred wire insertions; however, the contacts here are custom-formed for longevity with nickel-plated phosphor bronze rated for 50,000 insertions, so your connections stay firm project after project. The white POM plastic housing resists discolouration and feels solid compared to cheap and cheerful alternatives.
At just 45.7 × 35.6 mm, it fits directly onto Arduino protoshields and into tight enclosures. Peelable adhesive backing and two included mounting screws give you flexible mounting options. It plugs seamlessly alongside larger BusBoard breadboards like the BB400 and BB830 when your project outgrows one of these.
The BB170 arranges its 170 tie points in two columns of 17 rows, separated by a standard 2.54 mm (0.1″) centre channel - wide enough to straddle DIP-package ICs. Each row connects five points internally, giving you 34 independent 5-point nets. There are no side-mounted power bus rails, keeping the footprint as compact as possible.
Features
- Contacts rated for 50,000 insertions, keeping connections reliable through years of prototyping
- Peelable adhesive backing and two mounting screws let you secure it wherever you need it
- Compact 45.7 × 35.6 mm footprint mounts directly on Arduino protoshields and inside enclosures
- White POM plastic housing resists discolouration and outlasts generic ABS alternatives
- Accepts 21–26 AWG wire (0.4–0.7 mm diameter) — standard hookup wire and component leads
- Lead-free and RoHS compliant
Specifications
| Tie Points |
170 (IC-circuit area) |
| Contact Material | Phosphor Bronze, Nickel Plated |
| Insertion Rating | 50,000 cycles |
| Voltage / Current Rating | 36V DC, 2A |
| Wire Size | 21–26 AWG (0.4–0.7 mm) |
| Housing Material | POM Plastic (White) |
| Dimensions | 45.7 × 35.6 × 9.4 mm |
| Weight | 19.1 g |
| Compliance | Lead-Free, RoHS |
Resources
What's Included
- 1x BB170 Mini Solderless Breadboard (White)
- 2x Mounting screws
