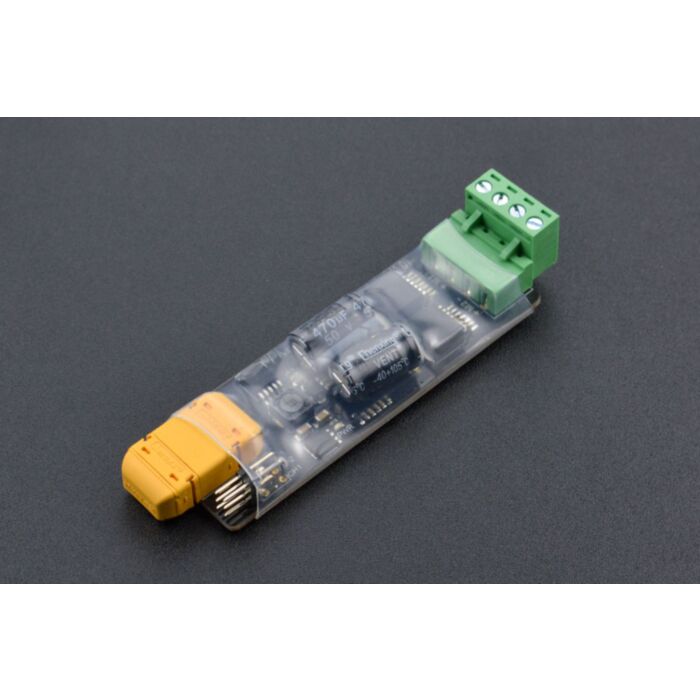

PPM 2x3A DC Motor Driver

SKU: DFR0513 Brand: DFRobot

This motor driver module is a special PPM signal motor controller for Aero modelling remote control. It is designed by DFRobot and it can be controlled by RC transmitter...

$26.60 AUD, inc GST

$24.18 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 17

Quantity Discounts:

10-25 $23.45 (exc GST)
25+ $22.97 (exc GST)

Introduction

This motor driver module is a special PPM signal motor controller for Aero modelling remote control. It is designed by DFRobot and it can be controlled by RC transmitter. The driver can convert PPM signal to the motor speed and direction control signal. There are two signal receiving channels (CH1, CH2) and two motor channels (M1, M2) on the board. Each signal input channel uses a standard 50-Hz PPM signal with a duty cycle of 5% to 10%. When the rocker returns to the middle, the motor stops rotating, waggling the rocker up and down (or left and right), and the motor rotates forward or backward.

The motor driver supports 7 ~ 12V wide range power input, the maximum input voltage is 40V, and the continuous current of each channel is 3A, the allowable peak current is 6A. When the current is over 6A, the driver chip will be into a protected state (in the protection state, it requires repower to start again). The module has LDO power management system, which can provide an output current of 5V/200mA externally. Therefore, the remote control receiver of the model can be directly connected to the driver board without additional power supply to the receiver.

FEATURES

2-way independent motor drive

Controlled by PPM signal, compatible with servo control signal

Designed for aeromodelling and fighting robots

Support professional aircraft model remote control

7~12V wide input range

With overload protection

Specification

Input Voltage: 7~12V

Logic Power: 5V (compatible with 3.3V controller)

Master Chip: STM8S105

Driver Chip: TLE5205

Drive Signal: 1000~1469us Forward decrement
1470~1560us stop domain
1561~2000us reverse increase

3A current continuous drive capability

6A peak current protection

Supports independent two-channel motor drive

Dimension: 90mm×30mm

Weight: 35 g

Documents

Product wiki

Parts List

PPM 2x3A DC Motor Driver x1
