Power HD Low-Profile Digital Servo 1207TG

SKU: POLOLU-2148 Brand: Pololu

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Overview

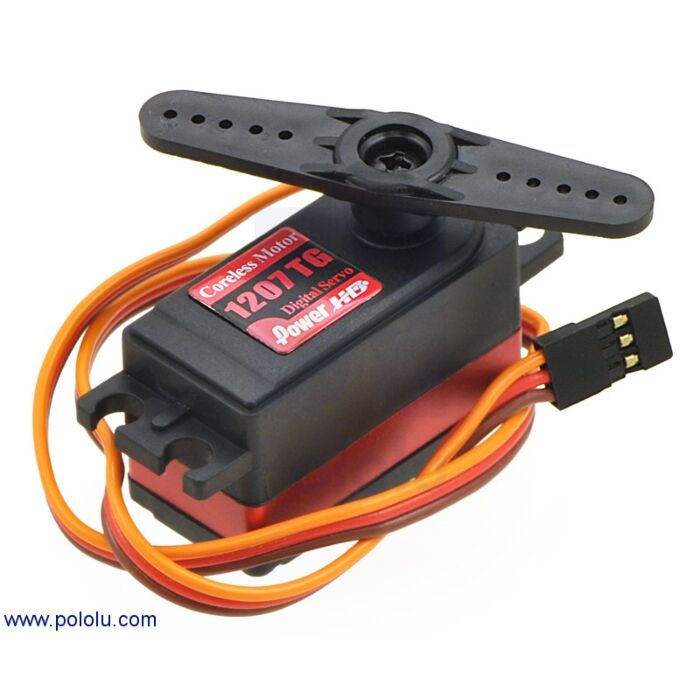

The HD-1207TG is a premium servo that is set apart by its unique, low-profile shape. Despite its reduced size and weight, the 1207TG offers the kind of performance usually only found in heavier standard-size servos, which makes it great for applications with tight space or weight constraints. The picture on the right shows how the 1207TG compares to Pololu's popular 1501MG standard-size servo.

Digital electronics combined with a coreless motor, titanium-shielded aluminum gears, and two ball bearings give this servo a distinct edge over typical standard-size servos. The 1207TG works with standard RC pulses at frequencies up to 333 Hz. The 12″ (300 mm) lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. The picture below shows an example of the hardware that might be included with this servo (hardware might vary).

The pictures below show the all-metal (copper and aluminum) gear train and ball bearings.

Copper and aluminum gears and ball bearings of the Power HD digital servo 1207TG.

You can find more information about this servo under the specifications tab and in its datasheet (364k pdf).

Note that, as with most hobby servos, stalling or back-driving this servo can strip its gears.
