Panel Mount Right Angle 10K Linear Potentiometer w/On-Off Switch - 10K Linear w/ Switch

Rating:

100% of 100

SKU: ADA3395 Brand: Adafruit

This Panel Mount Right Angle 10K Linear Potentiometer w/ On-Off Switch is a two-in-one, with both a breadboard-friendly potentiometer and a switch. For the potentiometer-half...

$3.35 AUD, inc GST

$3.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $2.93 (exc GST)
25+ $2.84 (exc GST)

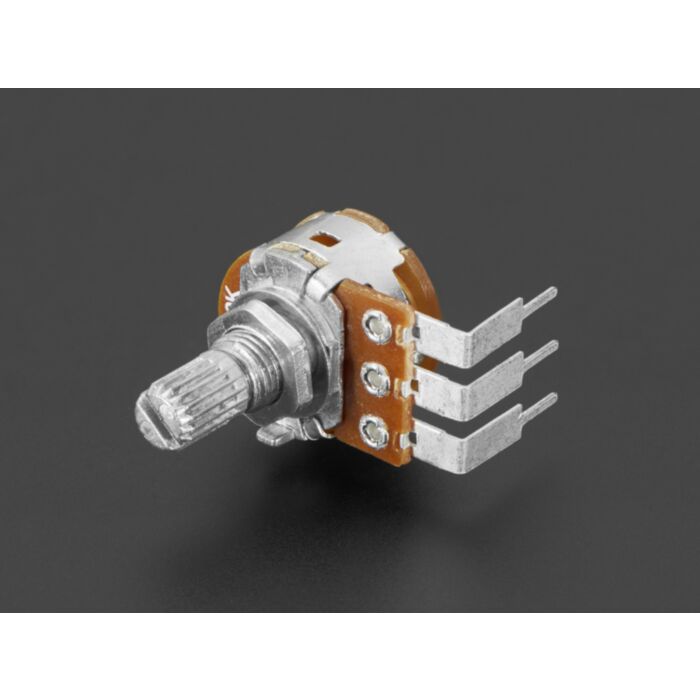

This Panel Mount Right Angle 10K Linear Potentiometer w/ On-Off Switch is a two-in-one, with both a breadboard-friendly potentiometer and a switch. For the potentiometer-half, you've got a standard linear taper 10K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. It also comes equipped with an on/off switch at the beginning of the shaft's rotation. Adafruit like this one because the right-angle legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. To use the switch, you'll need to solder to the two tabs in the back.

Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut. We have got plenty of matching T18-splined knobs that you can pair up

Technical Details

10K ohm potentiometer, linear taper
100,000 Cycle Life
16mm Body
Rotational travel: 300°
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in

Product Dimensions: 31.0mm x 25.5mm x 17.5mm / 1.2" x 1.0" x 0.7"

Product Weight: 7.9g / 0.3oz

This product is listed in:

Components & Parts>Potentiometers>Rotary
