ORION™ Delta 3D Printer - Black

SKU: ADA2259 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

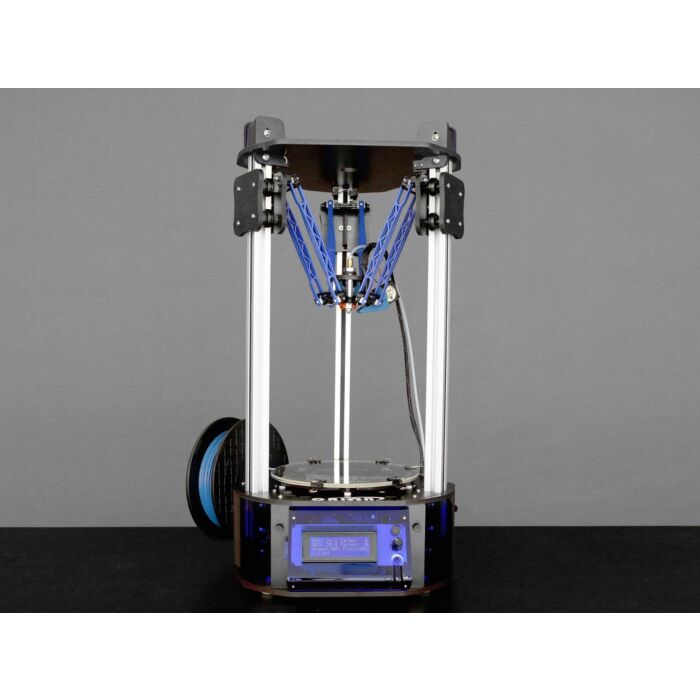

The ORION™ Delta 3D Printer is an exciting and attractive new 3D printer from the folks at SeeMe CNC that's designed to print ABS, PLA, and other materials from the very beginning. There's no need to refine or do anything to your printer - so you really have a ton more options for material than you usually do with an unmodified 3D printer.

There's also an up-front LCD panel so you can see your printing status and an on-board SD card to store up to 4GB of files. The printer runs with high speed positioning (up to 300mm/s) with high precision at 50 micron accuracy.

This printer doesn't require much set up or configuration and you can basically start printing right out of the box. Comes with a 0.5mm nozzle and includes a 1lb spool of PLA filament. And if you need more, We carry a wide variety of filament here.

Check out the video above for more info.

There are lots more specs in the tech details below but Adafruit are really into this 3D printer for its unique design and usability. This is the black version of the Orion Delta.

Note: Shipping weight reflects UPS' new dimensional weight regulations.

Technical Details

Overall Printer Size: 14" Diameter 24" tall
Overall Printer Weight: 18 Pounds
Power Requirements: 100-240 AC (Selectable on power supply input)

Build Area

Maximum Printable X/Y Area: 6" Diameter (150mm)
Maximum Printable Square Size: 4 1/8"" (106mm)
Maximum Printable Z Height: 9 1/4" (235mm)

Printing Specifications

Max X/Y Resolution: .1mm
Max Z Resolution: .0125mm
Avg. Print Speed: 30-60mm/s
Max Movement Speed: 300mm/s
Max Hotend Temperature: 245c
Max Heated Bed Temperature: 120c
Part Cooling Fan Included (G Code Controlled)

For technical support with your ORION™ Delta 3D Printer visit the SeeMeCNC forums or email directly [email protected]. For replacement parts or warranty assistance email [email protected].
