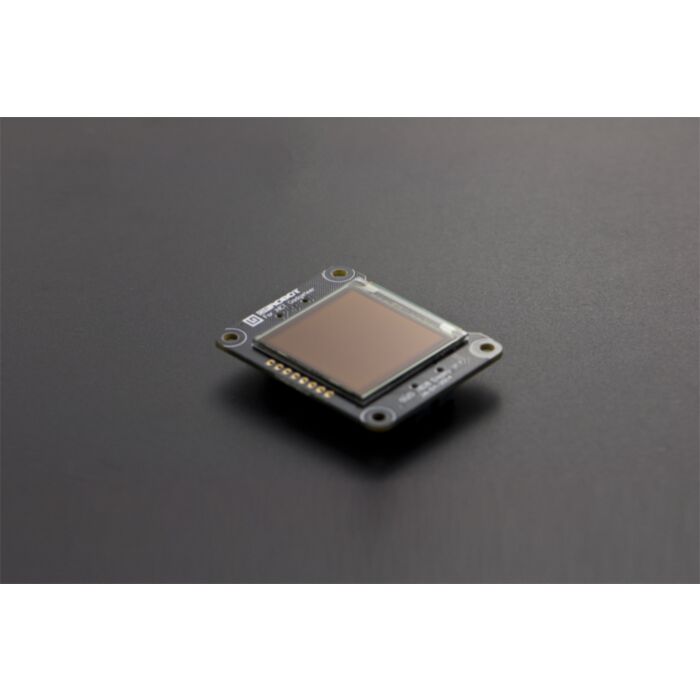

OLED 2828 Display Module (Arduino Compatible)

SKU: TOY0005

$49.34 AUD, inc GST
$44.85 AUD, exc GST

More Views

OLED 2828 Display Module (Arduino Compatible)
49.34 AUD

SKU: TOY0005

$49.34 AUD, inc GST
$44.85 AUD, exc GST
In stock, with a short lead time. 40 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 2nd of Jul with Express Post within Australia.

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

An OLED display works without a backlight. Thus, it can display deep black levels and can bethinner and lighter than a liquid crystal display (LCD). In low ambient light conditions such as a dark room an OLED screen can achieve a higher contrast ratio than an LCD. OLEDtechnology is used in commercial applications such as displays for mobile phones and portabledigital media players, car radios and digital cameras among others.

Support arduino controller and other 3.3V microcontroller.

Specification

  • Operating Voltage:3.3V,5V
  • 262,144k Colors(max)
  • 128×128 RGB pixel resolution
  • Interface:SPI or Gadgeteer
  • Operating emperature:-30℃ ~ +70℃
  • OLED Size:26.855 × 26.864(mm)
  • Module Size:52.00 × 42.00(mm)
  • Weight:20 g
  • Size:1.5 inch
  • Driver IC:SSD1351
Pins Identification
Arduino port
  • 3.3:Logic power3.3V
  • 5V:OLED power 5V (through boost circuit to supply 13V to screen)
  • G:GND
  • RST:reset
  • SCK:SCK
  • SI:MOSI
  • CS:Chip Select
  • DC:D/C

Parts List

  • OLED 2828 diaplay module x1
  • 1.27mm IDC10 cable x1
Documentation and Resources:
