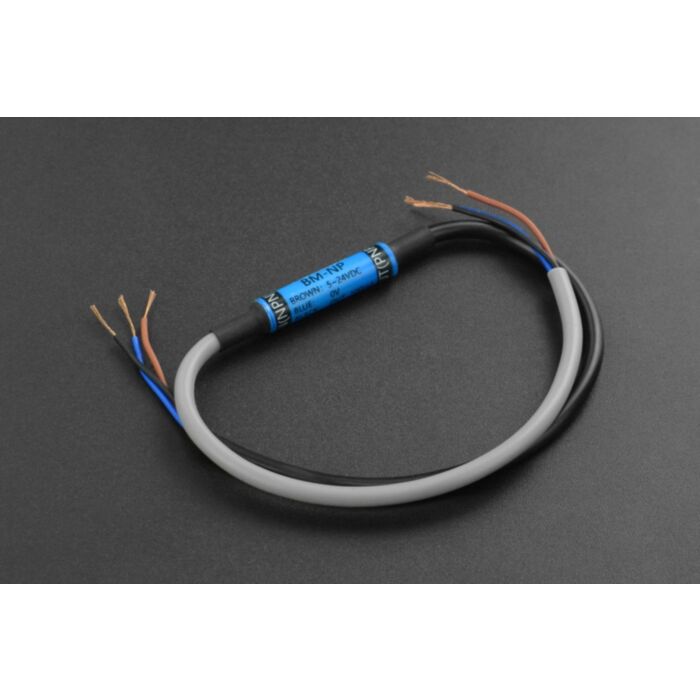

NPN to PNP Signal Converter / Adapter Module

SKU: FIT0850 Brand: DFRobot

This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your...

$17.30 AUD, inc GST

$15.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 1st of Apr

Quantity Discounts:

10+ $15.10 (exc GST)
25+ $14.63 (exc GST)

Introduction

If sensors are used in your equipment or control systems, having these signal converter modules like this NPN to PNP converter readily available could effectively eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.

This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your device.

Specification

Working Voltage: 5~24V DC
Current Protection: Overcurrent protection, surge absorption
Load Current: 100mA max
Operating Temperature: -20°C ~ 70°C
Operating Humidity: 35~85%RH
Response Time: 1us
Model: BM-NP
Conversion: NPN.NO-PNP.NO

Documents

Product wiki

Parts List

NPN to PNP Converter x1
Wire Connector x1
