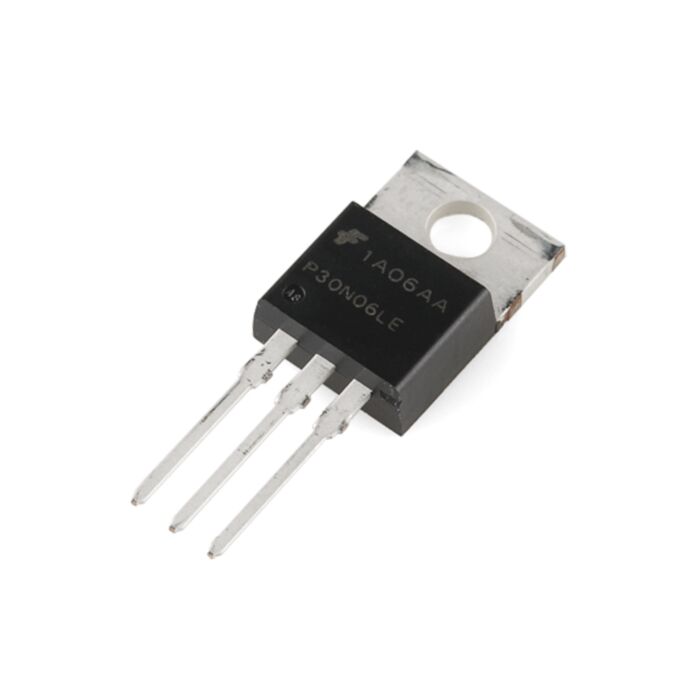

N-Channel MOSFET 60V 30A (P30N06LE)

SKU: COM-10213 Brand: Sparkfun Guides (1)

Retired Product

Replaced by: ADA355
This product has been replaced by: ADA355
This product is no longer available. This page is only for reference.

If you've ever wondered how to control the headlight of a car from a microcontroller, a MOSFET is what you need. This is a very common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.

**Note: **We stock two different models of this component, the two are nearly identical and can be used interchangeably. We've provided links to both datasheets below. Sparkfun are currently shipping the FQP30N06L.

Documents

3D Download: Sketchup, STL, IGES, STEP, Blender, Solidworks
