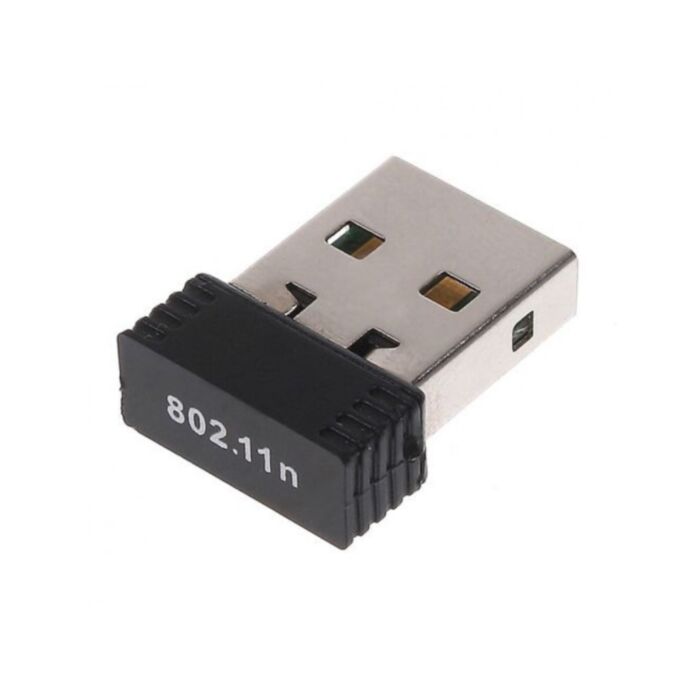

ModMyPi WiFi Dongle - Nano USB

SKU: CE05877 Brand: ModMyPi

Retired Product

Replaced by: CE05877

This product has been replaced by: CE05877
This product is no longer available. This page is only for reference.

Specially manufactured by ModMyPi for the Raspberry Pi, this plug and play wireless USB 11N nano wifi dongle will get your Raspberry Pi hooked up to the internet wirelessly within seconds! The unit uses the plug and play Ralink RT5370 Chipset, which requires no setup or installation on Raspian, XBMC or OpenElec, and features an integrated micro antenna to give you clear and constant WiFi signal.

Unlike ordinary wireless networking technologies that are confused by signal reflections, the 802.11n’s MIMO (Multi-Input, Multi-Output) actually uses these reflections to increase 4 times range of 802.11g and reduce "dead spots" in the wireless coverage area. It complies highly with IEEE802.11g/IEEE802.11b standard, but when both ends of the wireless link are Wireless-N, the speed can be increased even 3 times of 802.11g by using twice as much radio band.

This nano WiFi dongle utilizes the Ralink 5370 Chipset.

Features

Tiny Nano Dongle!
Can be powered directly from the Raspberry Pi or from a powered hub.
Tested for Compatibility with the Raspberry Pi
Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards
Provides USBv2.0 port
Provides max. 150Mbps receiving rate and 150Mbps sending rate
Supports 20MHz/40MHz frequency width
Supports AP mode
Auto-detects and changes network transmission rate
Provides two work modes: Infrastructure and Ad-Hoc
Supports PSP, WII and NDS connecting to the Internet and Xlink Kai
Supports 64/128-bit WEP, WPA/WPA2 encryption methods and 802.1x authentication standards
Supports WPS (Wi-Fi Protected Setup) encryption method to free you from remembering long passwords
Supports WMM to make your voice and video more smooth
Storage Humidity 5% ~ 90% RH non-condensing
Operating Humidity 10% ~90% RH non-condensing
Sensitivity 68dbm(N mode150M, rich value);70dbm(G mode 54M);88dbm(B mode 1M)
EVM 68dbm
Transmission Power 15dbm
Frequency Range 2.4MHz
IEEE 802.11 Standards Supported 11b,11g,11n

Tutorials

How To Install Wifi Dongle On The Raspberry Pi

Datasheet

Ralink 5370 iw list out put
