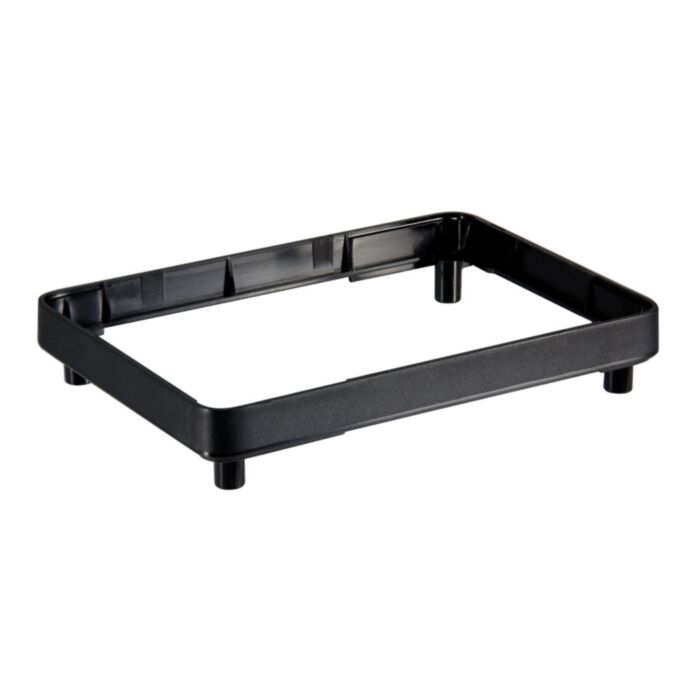

ModMyPi Modular RPi Case - 10mm Spacer (Black)

Rating:

80% of 100

SKU: CE05704 Brand: The Pi Hut

The Modular Raspberry Pi Case is designed to be fully customizable by the user, and adaptable to suit a range of requirements.

$3.60 AUD, inc GST

$3.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $3.15 (exc GST)
25+ $3.05 (exc GST)

The Modular Raspberry Pi Case is designed to be fully customizable by the user, and adaptable to suit a range of requirements. The streamlined look, and adaptability makes it perfect for many applications, including, the hobbyist maker, digital signage, industrial protection, living-room & child-friendly media centres, classroom eduction, workshops and many more! All add-ons are designed to be interchangeable and can be added and removed when required.

The basic case has a stock internal headroom of 25.70mm, measured from the top of the RPi PCB to the inside of the lid, which allows many Raspberry Pi breakout boards to fit without any modifications. If the user wants to increase this headroom further, to enable the use of larger breakout boards, place prototype PCBs internally, or stack multiple boards on one another, spacers can be utilized. Spacers increase the internal height by 10mm per spacer and can be stacked to increase the headroom further e.g. 2 spacers would be 20mm extra. Spacers can be stacked as high as needed, however, longer screws are required if the case needs to be secured.

Features

Makes Your Case Compatible with 99% of Breakout Boards
Spacers Raise Internal Height by 10mm Enabling the Case to Grow with your Project
Spacers can be Stacked Increasing Internal Height by up to 50mm or more!
Great for Embedded Applications, and Hobbyist Projects

Screw Size Guide

Depending on the number of spacers required, the length of the screw required will change.

We currently cater for up to 5 spacers with corresponding screw lengths (only the 28mm screws are included with the case). Screws types compatible with spacers plates are both No.4 (US) and M3 (UK/EU). Users can of course, source screws via their own channels, or alternatively, screws up to 58mm are available from us with the links as below.

No. of Spacers	Screw Length Required (mm)
0	28 (Included with Case)
1	38
2	48
3	58
4	68
5	78
