Mini Load Cell - 500g, Straight Bar (TAL221)

Rating:

100% of 100

SKU: SEN-14728 Brand: Sparkfun

This miniature straight bar load cell (sometimes called a strain gauge) can translate up to 500g of pressure (force) into an electrical signal. Each load cell is...

$22.40 AUD, inc GST

$20.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

10-25 $19.75 (exc GST)
25+ $19.35 (exc GST)

Recommended Essentials:

SparkFun Load Cell Amplifier - HX711

$17.95

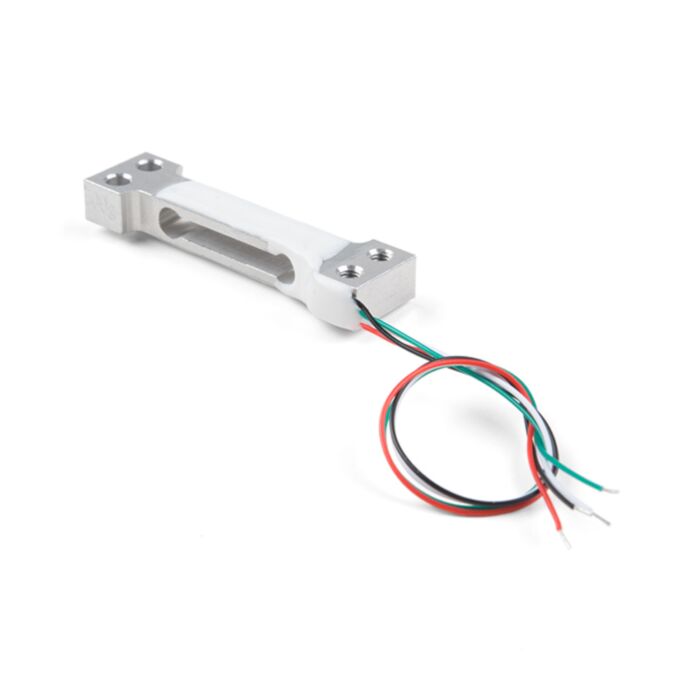

This miniature straight bar load cell (sometimes called a strain gauge) can translate up to 500g of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 500g. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation.

The colour code on the wiring is as follows:

Red (Excitation or VCC)
Black (Excitation- or GND)
White (Amplifier+, Signal+ or Output+)
Green (Amplifier-, Signal- or Output-)

Additionally, these load cells offer an IP65 protection rating and features four M3 sized through-holes for mounting purposes.

Get Started with the Load Cell Guide

Features

Capacity: 500g
Material: Aluminum-Alloy
Parallel Beam Type
IP65 Rating
47mm x 12mm x 6mm, 110mm Wire

Documents

Datasheet
