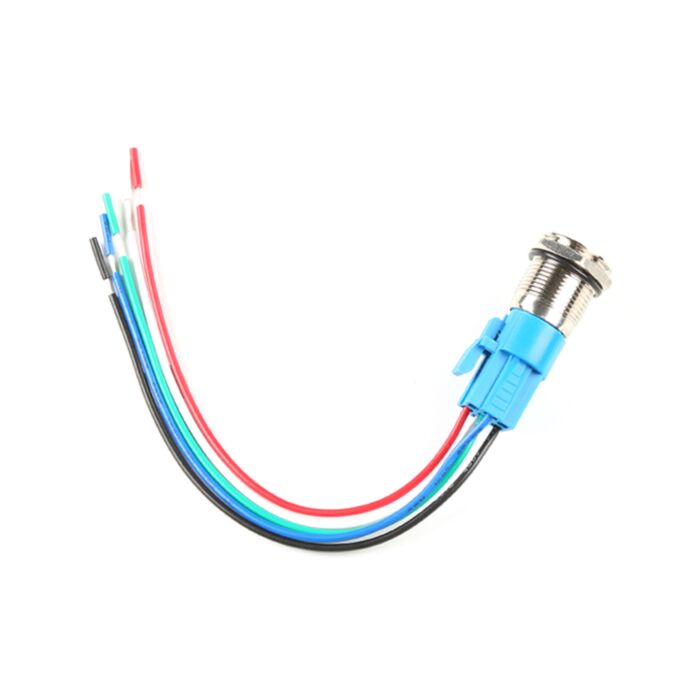

Metal Pushbutton - Momentary (16mm, Green)

SKU: COM-11968 Brand: Sparkfun
This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount momentary switch with an illuminated green LED ring. It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These momentary buttons are rated up to 3A and 250VAC while the LED is rated for 5V.
$13.35 AUD, inc GST
$12.14 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 05 and Mar 10

Quantity Discounts:

  • 10-25 $11.77 (exc GST)
  • 25+ $11.53 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated Blue LED ring. It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These latched buttons are rated up to 3A and 250VAC while the LED is rated for 5-12V.

This pushbutton comes with a latching cable with 5 leads. Making it easier to attached to breadboards and extend the reach of your project.

Note: The images for this button show an LED voltage rating of 5V. Both our technical support team and our supplier have verified that the voltage range for the the LED to be 5-12V.

Features

  • Stainless Steel Body
  • IP65 Weatherproof Rating
  • Tamper Resistant
  • Latching Operation Type
  • Blue LED Ring
