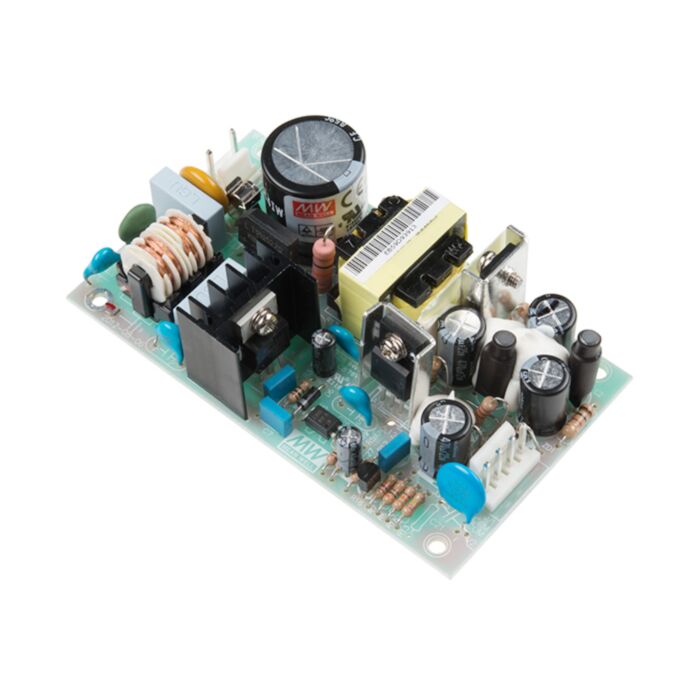

Mean Well Dual Output Switching Power Supply (15VDC, -15VDC 0.8A)

SKU: TOL-14101

$27.36 AUD, inc GST
$24.87 AUD, exc GST

More Views

Mean Well Dual Output Switching Power Supply (15VDC, -15VDC 0.8A)
27.362 AUD

SKU: TOL-14101

$27.36 AUD, inc GST
$24.87 AUD, exc GST
In stock, with a short lead time. 176 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

This is a 24W dual output switching power supply from Mean Well. This power supply is extremely reliable and able to output 15VDC at 0.8A. We’ve been testing this power supply for quite some time and can definitely attest to its might. Although this power supply doesn’t have a slick metal case like its siblings, it still features short circuit, overload, and overvoltage protections.

On this power supply board you will find a selector switch to change the voltage range between 85VAC to 264VAC or 120VDC to 370VDC. This specific model is cooled by free air convection and operates at a temperature of -10°C to +60°C. Mean Well has really outdone themselves with their power supplies, which are high quality and should last for quite some time without any loss in reliability!

Warning: Please keep in mind that this board is really meant for someone with experience and good knowledge of electricity. If you're uncomfortable dealing with high voltage, please check out one of the other Mean Well power supplies. The other Mean Well power supplies are fully enclosed, making them a lot safer.

Features:

  • Output Voltage: 15VDC (CH1), -15V (CH2)
  • Output Current Range: 0.1–1A
  • Output Rated Power: 24W
  • Input Voltage Range: 85–264VAC, 120–370VDC
  • Load Regulation: ±3.0%
  • Line Regulation: ±0.5%
  • Low Leakage Current @ <0.5mA
  • Fixed Switching Frequency @ 100KHz
  • Universal AC input/full range
  • Protections: short circuit, overload, overvoltage
  • Cooling by free air convection
  • 100% full load burn-in test
