MATV Distribution Amplifier 27-32dB

SKU: AL2071

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

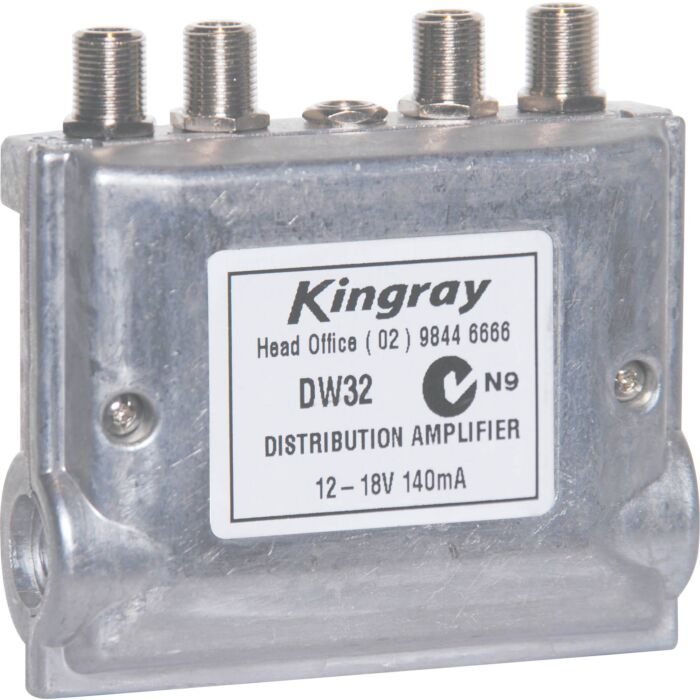

This Kingray^® DW32 amplifier is suitable for medium sized MATV distribution systems. Ideal for use in hotels and apartment blocks. It has been designed for indoor use and is fitted with F connectors. It also features adjustable gain control and a two stage cable equalisation circuit. This is to equalise the low band and high band signals due to signal loss in the distribution cable. The amplifier is housed in a diecast enclosure for maximum protection from stray signals. Antenna signal is boosted by 27-32dB (44 860MHz). Includes power supply. Pay TV Approved!

Specifications

VHF
Frequency Range: 44-230
Maximum Gain (dB): 26-28
Inputs :2
Noise Figure (dB): 3.5
Gain Control (dB): 10
Power Supply (PSK#):12S or 12F
Current: 150
Test point: -30 dB
Output Figure DIN45004B (uV): 112
UHF
Frequency Range: 470-860
Maximum Gain (dB): 32
Inputs : 2
Noise Figure (dB): 3.5
Gain Control (dB): 10
Power Supply (PSK#): 12S or 12F
Current: 150
Test point: -30 dB
Output Figure DIN45004B (uV): 112
