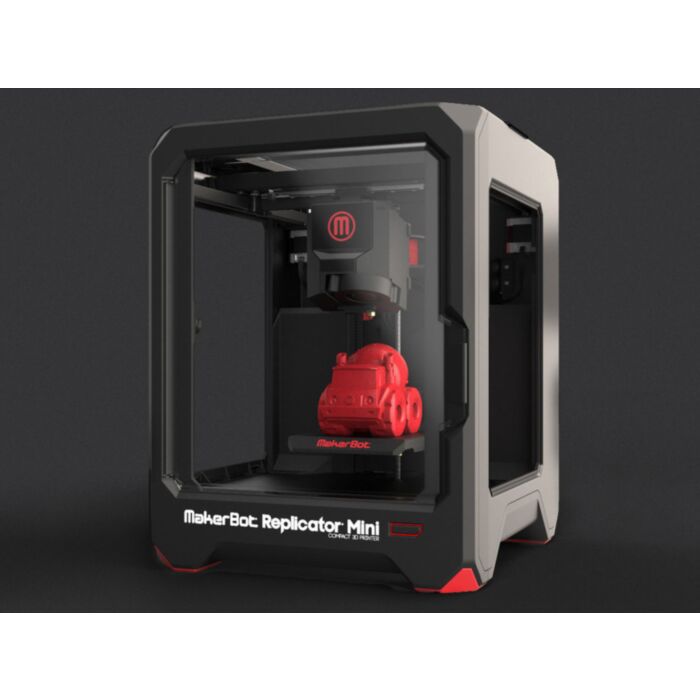

MakerBot® Replicator™ Mini

SKU: ADA1913 Brand: Adafruit

Retired Product

Replaced by: lulzbot 3d printer
This product has been replaced by: lulzbot 3d printer
This product is no longer available. This page is only for reference.

The MakerBot® Replicator™ Mini is a compact 3D printer from the folks over at MakerBot. It's durable, reliable, and has an unparalleled ease of use thanks to its One Touch™ 3D Printing technology. Unlike its big brother the MakerBot Replicator, it also comes in a compact, desktop form - taking up just a slightly larger footprint than the assembled Printrbot Simple Kit.

There are other advantages to the MakerBot® Replicator™ Mini as well. It comes with MakerBot's free software and gives you access to the MakerBot Thingiverse® - their premiere 3D design community. And on top of all that, it includes all the advancements you've come to expect from the MakerBot team including the MakerBot Replicator Smart Extruder, an on-board camera, software, and cloud utilization through MakerBot Mobile. Overall, it offers all of the features and support of a MakerBot in a compact package.

While Adafruit's Adafruit Edition Replicator remains out of stock while Adafruit try to decide whether we'll keep stocking it, Adafruit are putting in just a few of the Replicator Minis to gauge demand. We also carry a variety of other 3D printers if MakerBot's not your 3D printed cup of tea.

Technical Details

PRINTING

  • Print Technology: Fused Deposition Modeling
  • Build Volume: 100mm x 100mm x 125mm / 3.9" X 3.9" X 4.9"
  • Layer Resolution: 200 Microns
  • Filament Diameter: 1.75mm / 0.069"
  • Filament Compatibility: Makerbot PLA Filament, Small Spool, 0.2KG (0.5 lb)
  • Nozzle Diameter: 0.4mm / 0.015"
  • Print File Type: .Makerbot

TEMPERATURE

  • Ambient Operating Temperature: 15-26°C [60-78°F]
  • Storage Temperature: 0-38°C [32-100°F]

SIZE & WEIGHT

  • Product Dimensions: 295mm x 310mm x 381mm / 29.5" x 12.2" x 15.0"
  • Product Weight: 8 kg / 18 lbs

MECHANICAL

  • Construction: PC ABS w/ Powder-Coated Steel Reinforcement
  • Build Surface: Injection Molded Acrylic
  • Stepper Motors: 1.8° Step Angle w/ 1/16th Micro-Stepping
  • XY Positioning Precision: 11 Microns (0.0004")
  • Z Positioning Precision: 2.5 Microns (0.0001")

SOFTWARE

  • Software Bundle: Makerbot Desktop
  • Supported File Types: STL, OBJ, Thing, Makerbot
  • Operating Systems: Windows (7+), Mac OSX (10.7+), Linux (Ubuntu, Fedora)

ELECTRICAL

  • Power Requirements: 100-240 VAC; 0.75-0.41A; 50-60 Hz; 100W
  • Connectivity: USB (Wi-Fi coming soon)

CAMERA

  • Camera Resolution: 320 x 240

Datasheet
