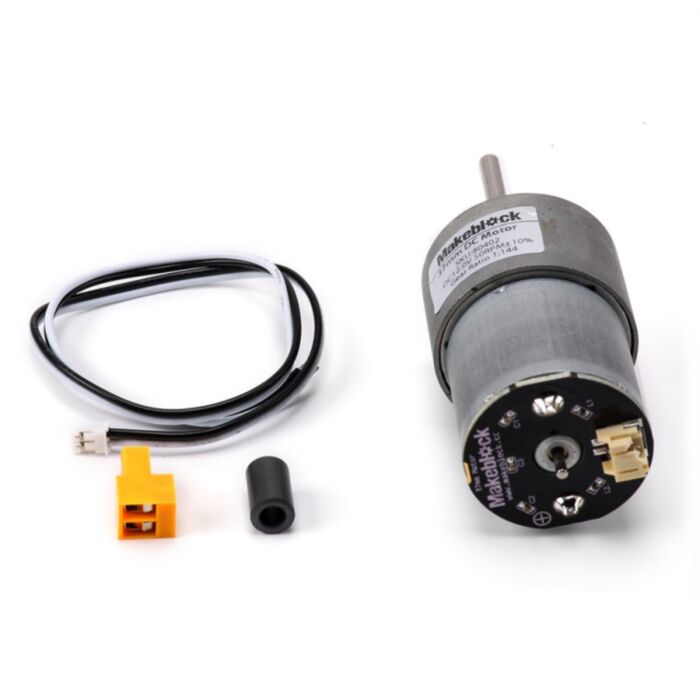

Makeblock DC Motor-37 12V/50RPM

SKU: MB80402

$29.50 AUD, inc GST
$26.82 AUD, exc GST

More Views

Makeblock DC Motor-37 12V/50RPM
29.5 AUD

SKU: MB80402

$29.50 AUD, inc GST
$26.82 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Descripton:

DC motors are the most commonly used motors in Makeblock Platform. With Makeblock DC Motor-25 Brackets, they may be easy to connet to Makeblock structural components.



Specification:

1 Test condition

1.1. Rated voltage 12.0 V(DC)

1.2. Ambient temperature+25±3℃;

1.3. Ambient relative60%±5%

2. No-load characteristic

2.1 Gear Ratio:1:144 ;

2.2 No load current 100 mA

2.3 No load speed 50 ±10%rpm;

3. Load characteristic

3.1. Rated torque 4.5±Kg.cm;

3.2. Rated current:≦ 300 mA;

3.3. Rated speed 40±10%rpm;

3.4. Stall torque: 10.0± kg.cm;

3.5. Stall current:≥ 1.1 A;

4. Direction of RatationCW

Thrust play of shaft0.05-0.5 mm;

Radial play of shaft:≦ 0.02 mm;



Size Chart (mm) :
