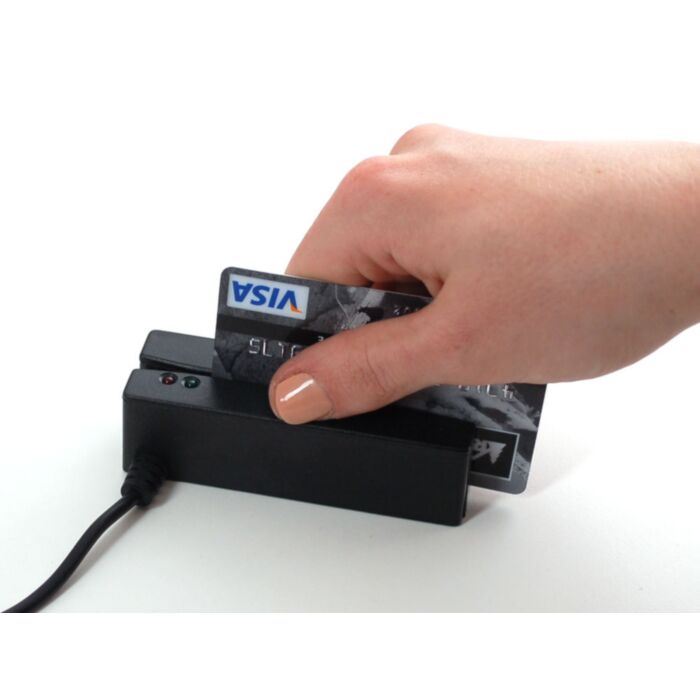

Magstripe Reader - PS/2 Interface - 3 Tracks (1&2&3)

SKU: ADA853 Brand: Adafruit
Decode what's hidden on your credit cards, or use it for an access system - this mag-stripe card reader can decode all three tracks! Adafruit like this small and easy...
$124.95 AUD, inc GST
$113.59 AUD, exc GST

Quantity Discounts:

  • 5-10 $109.05 (exc GST)
  • 10+ $105.64 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Decode what's hidden on your credit cards, or use it for an access system - this mag-stripe card reader can decode all three tracks! Adafruit like this small and easy to use mag-stripe reader for being so microcontroller-friendly. Instead of a USB port, it has a PS/2 interface and acts like a 'keyboard'. In fact, its designed to be a 'pass through'/'keyboard wedge' device for point-of-sale terminals. What's nice about PS/2 is that it uses a single connector for power and data, and uses two data pins. When a card is swiped, the raw data is decoded, parity-checked and spit out as if they were typed on a keyboard. There is one magnetic head but you can swipe in either direction and will emit data in the right order. Nearly all microcontrollers have existing PS/2 keyboard examples that would work fine with this swiper. For Ardiuno users, Adafruit tried out PJRC's PS2_Keyboard library with great success - just check the 'simple text' example for which pins you can connect to on your 'duino (on an Uno Adafruit used digital pins 2 and 3). We suggest Adafruit's PS/2 adapter cable to make the wiring easy. Swipe any magnetic card and you'll see the data appear in the serial terminal! This reader will read and decode all three tracks of standard magnetic-stripe cards. It cannot write to cards, and cannot be modified to write to cards. We also have a two-track reader which is less expensive but does not read track #3. Wikipedia has a great article on magnetic stripe cards which will help you determine if you need a three-track reader or if a two-track reader is good enough.

Technical Details

  • 29mm (1.6") wide
  • 90.5mm (3.56") long
  • 26.4mm (1.04") tall
  • 196cm (77") cable

This product is listed in:

Sensors>Barcode & Magstripe
