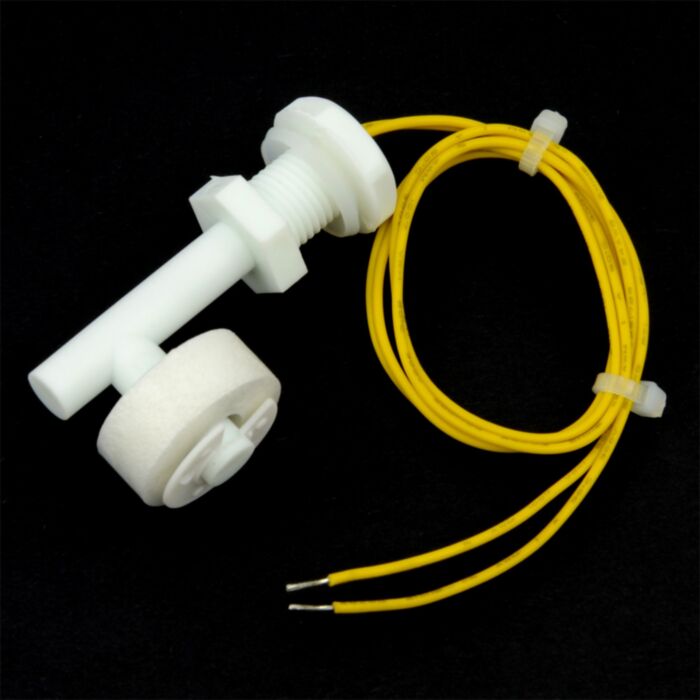

Liquid Water Level Sensor Right Angle Float Switch

SKU: 017-RDC-CS11133 Brand: Sure Electronics

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

Use them with hydroponics, salt-water tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach., reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be. This is a mini float switch. Contains no mercury.

This right angle float switch can be arranged in any height.

Product Number	RDC-CS11133
Product Name	Liquid Water Level Sensor Right Angle Float Switch
Max Contact Rating	10w
Max Switching Voltage	100V DC/AC
Max Switching Current	0.5A
Max Breakdown Voltage	220V DC/AC
Max Load Current	1.0A
Max Contact Resistance	100 mΩ
Temp Rating	-10~+85℃
Float Body Material	P.P
Float Ball Material	P.P
Net Weight	20g/0.7oz
