LilyPad E-Sewing ProtoSnap Kit

SKU: KIT-14528 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Warning: This component/part requires a button battery to operate which is hazardous to young children. Do not use this component/part inside projects that are potentially accessible to young children.

The LilyPad E-Sewing ProtoSnap Kit is a great way to incorporate buttons and switches into an e-textile project without any programming required. Like other LilyPad ProtoSnap series boards, the individual pieces of the included E-Sewing ProtoSnap are pre-wired — allowing you to try out the function of the circuit before sewing. We have also included a CR2032 battery, needle set, conductive thread bobbin and a swatch of white felt. With all of these parts combined and the featured guide (found in the Documents tab), you will be able to plan and create fantastic projects straight out of the box!

The E-Sewing ProtoSnap includes three white LilyPad LEDs: two connected to a LilyPad Slide Switch and one connected to a LilyPad Button Board. A LilyPad Coin Cell Battery Holder with the included CR2032 coin cell battery provides all the power you need for the circuit. All you need to do is design how you want your project to be laid out, and then snap everything apart!

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education in e-textiles.

Note: Due to the requirements of shipping the battery in this kit, orders may take longer to process and therefore do not qualify for same-day shipping. Additionally, these batteries cannot be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

Get Started with the LilyPad E-Sewing ProtoSnap Guide

Includes

Included on the ProtoSnap:

1x LilyPad Coin Cell Battery Holder — Switched
1x LilyPad Slide Switch
1x LilyPad Button Board
3x LilyPad White LED

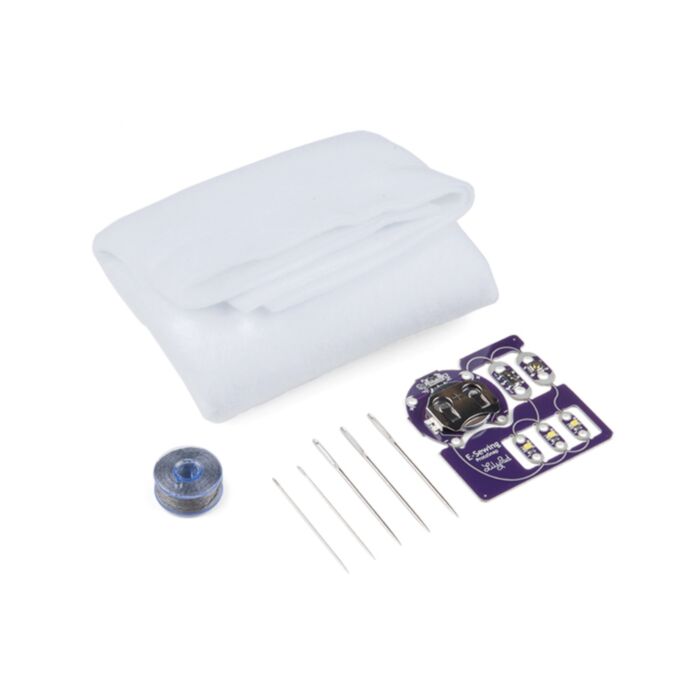

Included in the Kit:

1x LilyPad E-Sewing ProtoSnap
1x Conductive Thread Bobbin
1x Coin Cell Battery — CR2032
1x Needle Set
1x White Felt — 100 Square Inch
