Joystick Shield Kit

SKU: DEV-09760 Brand: Sparkfun

Retired Product

Replaced by: COM-15168

This product has been replaced by: COM-15168
This product is no longer available. This page is only for reference.

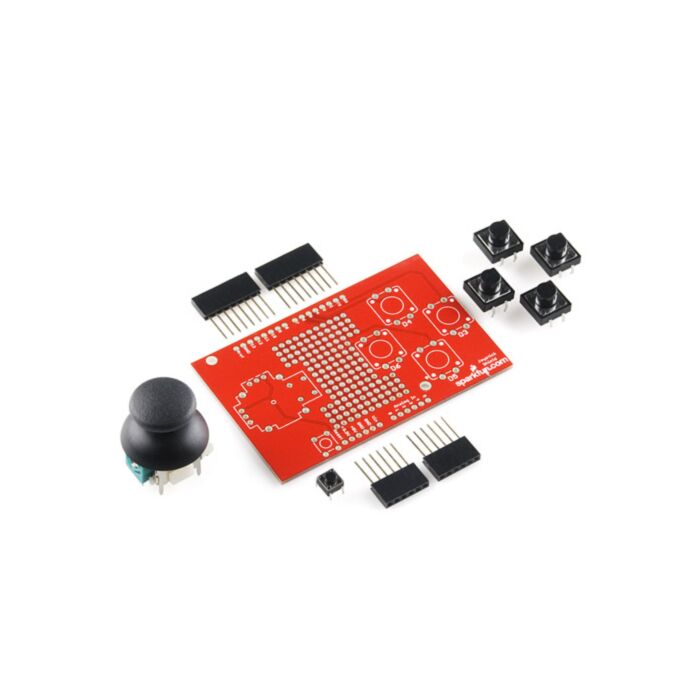

The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is required, but it's relatively easy and requires minimal tools. Sparkfun even have a step by step guide!

The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

Includes

1x Joystick Shield PCB
4x Momentary Push Button Switch - 12mm Square
1x Thumb Joystick
1x Mini Push Button Switch (breaks out Arduino's reset switch)
2x 6-pin Arduino Stackable Header
2x 8-pin Arduino Stackable Header
