IP67 True RMS Autoranging Digital Multimeter with Wireless USB Interface

Retired Product

Replaced by: CE09725

This product has been replaced by: CE09725
This product is no longer available. This page is only for reference.

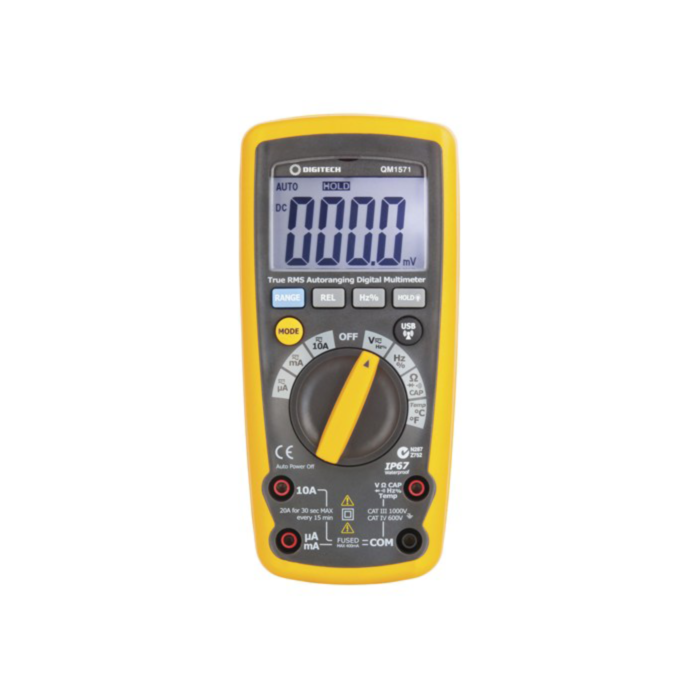

A quality true RMS multimeter with a wireless USB computer interface, non-contact voltage indicator, relative zero and data hold. Double moulded housing is impact resistant and quite durable, and IP67 waterproof rating makes this DMM capable of even the harshest conditions. Wireless USB interface and included logging software allow for computer-based live data logging whilst keeping your computer completely isolated and protected.

Technical Specifications

Insulation: Class2, Double insulation.

Overvoltage category: CATIV 600V, CAT III 1000V

NOTE: This meter meets CAT III and CAT IV IEC 61010 standards. The IEC 61010 safety standard defines four overvoltage categories (CAT I to IV) based on the magnitude of danger from transient impulses. CAT III meters are designed to protect against transients in fixed-equipment installations at the distribution level; CAT IV meters are designed to protect against transients from the primary supply level (overhead or underground utility service).

Maximum voltage between any terminal and earth ground: 1000V DC/AC RMS

Display: 4000 counts LCD display

Polarity: Automatic, (-) negative polarity indication.

Over-range: "OL" indication.

AC Response: True RMS

Low battery indication: A battery symbol is displayed when the battery voltage drops below the operating level.

Auto power off: Meter automatically shuts down after approx. 30 minutes of inactivity unless in wireless mode.

Operating environment: -10°C to 50°C (14°F to 122°F) at <70% relative humidity.

Storage temperature: -30°C to 60°C (-4°F to 140°F) at <80% relative humidity

Relative humidity: 90% (0°C to 30°C); 75% (30oC to 40°C); 45% (40oC to 50°C)

Maximum altitude: Operating: 3000m, Storage: 10,000m

Pollution degree: 2

Safety: The instrument complies with IEC/EN 61010-1:2001 and IEC/EN 61010-031:2002

Power: 9V battery, NEDA 1604, IEC 6F22

Dimensions: 182 (H) x 82 (W) x55 (D) mm

Weight: Approx. 380g.

Enclosure: Double moulded, waterproof (IP67)

Resources

Datasheet
