High Power 10W 1.5A LED DC Driver (LE-LL14113)

SKU: 017-LE-LL14113

$11.18 AUD, inc GST
$10.17 AUD, exc GST

More Views

High Power 10W 1.5A LED DC Driver (LE-LL14113)

SKU: 017-LE-LL14113

$11.18 AUD, inc GST
$10.17 AUD, exc GST

Retired Product

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

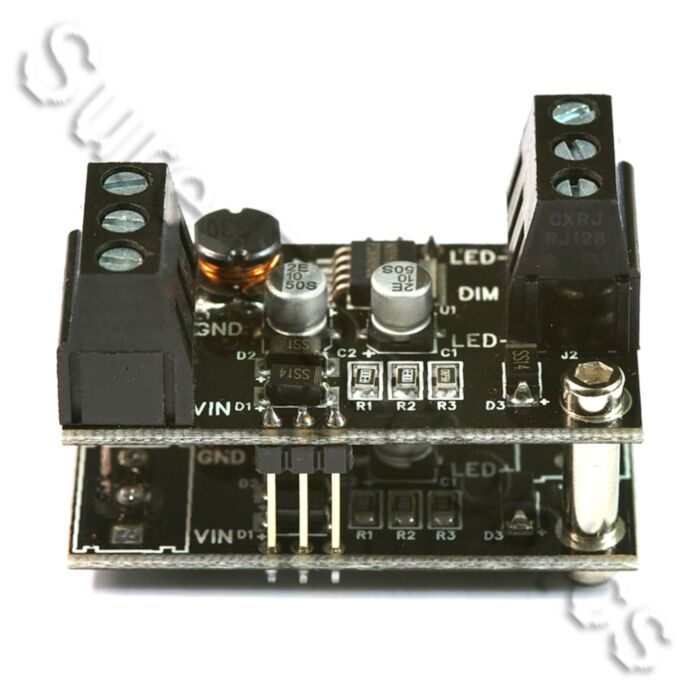

This 10W LED driver is a dual-layer item which can be used directly to drive LEDs without requirement for extra converters.

This driver integrates an MBI6651 chip (TO252 packaging) as the step-down DC-DC converter. It is a high efficient chip which is designed to deliver constant current to light up high power LED. Features of MBI6651 help make its applications safer, such as UVLO (under voltage lock out), over temperature protection, LED open-circuited protection and LED short-circuited protection. Moreover, thermal protection (TP) function has been introduced to protect IC from overheating (165°C) in various applications

Features:

  • Size: 45.80(L) × 25.50(W) × 31.20(H) ±0.2mm
  • Input voltage: 9V to 35V
  • 84% efficiency @ input voltage 9V, 1 LEDs
  • Typical 1626mA output current
  • PWM frequency: 100HZ to 1KHZ
  • Step-down DC/DC
  • Constant current output
  • TO252 packaging of MBI6651 helps heat dissipation
  • Untested under conditions of more than 4 LEDs
  • Allows users to control the dimming via an external PWM
  • Easy installation and long service life



LEDs vs Input Voltage:

Number of LEDs
1
2
3
4
Input Voltage(V)
9-12
18-24
24-35
30-35



 Pin Definition:

Pin Description
VIN Positive terminal for 9V-35V DC Power supply
GND Power Ground
LED+ Connect to the anode of LED
LED- Connect to the cathode of LED
EN PWM terminal. When applied with +5v or suspended, full amount of current will be output and when connected with ground, output current will be 0.



Applications:

  • Signage and Decorative LED Lighting
  • Automotive LED Lighting
  • High Power LED Lighting
  • Constant Current Source
