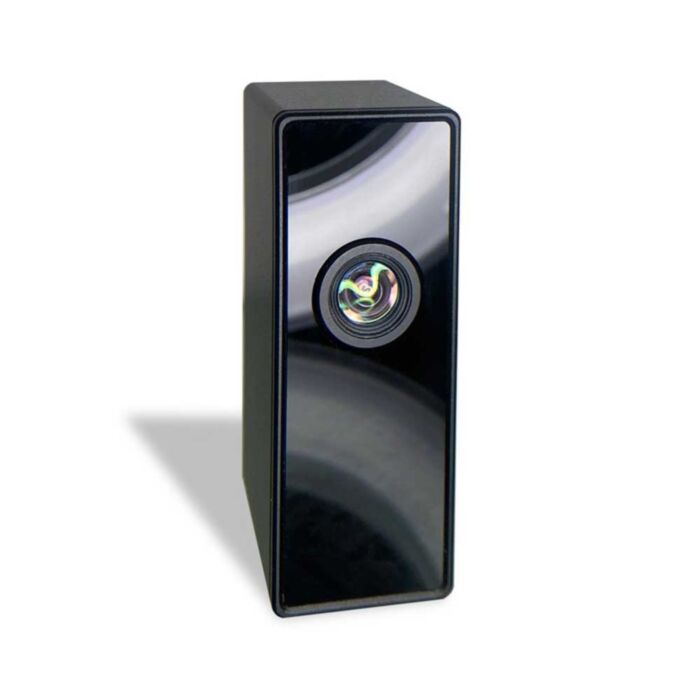

Hawk 588-1MA-UA 3D ToF Camera

SKU: 101990657 Brand: Seeed Studio

OPNCAM8008 Hawk 588-1MA-UA 3D ToF Camera is a 3D ToF camera which has high integration, high precision, long measurement range, and low power consumption. This consists of a ToF image sensor, VCSEL driver and a ToF ISP.

$974.95 AUD, inc GST

$886.32 AUD, exc GST

Quantity Discounts:

3-6 $850.86 (exc GST)
6+ $824.27 (exc GST)

Out of Stock

OPNCAM8508 uses USB3.0 as the communication interface with a PC or application processor and is ideal for 3D depth sensing applications.

OPNCAM8008comes with a powerful SDK and contains APIs, and example codes to conveniently get started. With the provided depth display tool software, "OPN ToF Viewer", which is a cross-platform compatible software package, you can easily visualize 3D depth sensor data.

Features

High Integration and high precision for advanced applications
Low Power Consumption for longer use
Long Measurement Range for better results
Easy Visualization via the cross-platform compatible depth display software
Contains powerful SDK, APIs and example codes for convenient deployment

Specifications

Resolution: 320 * 240
Pixel size: 15um
Sensor size: 1/3’’
Frame rate: 5 – 30fps
Measurement range: 0.2 – 10m
FOV: 86°(H) * 68°(V)
Distortion: <2.5%
Illumination: 850nm
Power consumption:
Depth accuracy: <=1%
Interface: USB3.0
Dimensions: (L*W*H) 63mm * 24mm * 37.8mm

What is a ToF Camera?
A ToF camera also known as a Time of Flight Camera, is a depth sensor that functions by sending a pulse of infra-red light into the chosen scene to measure the distance to every pixel within the range. Then the time duration it takes the IR light to be reflected back to the camera is recorded. After that, the distance can be calculated using simple mathematics, with the speed of light taken into consideration. ToF allows 3D depth information to be extracted from a scene in real-time using embedded processors.

Applications

Face recognition and face motion tracking
3D reconstruction
AR/VR
Hand and finger tracking for gesture control and interaction with virtual objects
Visual support for robot grippers
People counting and motion analysis
Surveillance

OPN8008D ToF Sensor Comparison

	OPNCAM8508 Dolphin 197-1MA-UA	OPNCAM8508 Dolphin 197-1MA	OPNCAM8008 Hawk 588-1MA-UA
Interface	USB 3.0	MIPI	USB 3.0
Frame Rate	5-60fps	5-60fps	5-30fps
Measurement Range	0.15-2m	0.15-2m	0.2-10m
FOV	71.8°(H) * 56.5°(V)	71.8°(H) * 56.5°(V)	86°(H) * 68°(V)
Illumination	940nm, 3W	940nm, 3W	850nm

Downloads

Datasheet
