Gravity: UART Infrared CO2 Sensor (0-50000ppm)

Skip to the beginning of the images gallery

Gravity: UART Infrared CO2 Sensor (0-50000ppm)

SKU: SEN0220 Brand: DFRobot

DFRobot released its latest wide range Arduino infrared CO2 sensor, which effective range is up to 0~50000ppm. This sensor is based on non-dispersive infrared (NDIR)...

$149.95 AUD, inc GST

$136.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

5-10 $130.86 (exc GST)
10+ $126.77 (exc GST)

DFRobot released its latest wide range Arduino infrared CO2 sensor, which effective range is up to 0~50000ppm. This sensor is based on non-dispersive infrared (NDIR) technology and has good selectivity and oxygen-free dependency. It integrates temperature compensation and support UART communication mode. Most importantly, the product is easy to use; it is compatible with all types of microcontrollers with UART port, like Arduino, Raspberry Pi and other microcontrollers. Besides, it has a long service life, up to 5 years! In addition, this UART Infrared CO2 Sensor is a high-performance sensor that combines technology of mature infrared absorption gas detection with precision optical circuit design as well as sophisticated circuit design. It has characteristics such as wide range detection, high sensitivity, high resolution, low power consumption, fast response, anti-water vapor interference, no poisoning, high stability and long life. It can be widely used in HVAC refrigeration and indoor air quality monitoring, industrial process and safety monitoring, agricultural and animal husbandry production process monitoring, etc..

DFRobot LCD Keypad Shield with UART Infrared CO2 Sensor This is a 0~50000ppm wide range CO2 sensor with UART communication port. It supports Arduino, Raspberry Pi and other microcontrollers. In addition, we also have a 0~5000 ppm infrared sensor with Gravity Analog interface, more easy to use: Gravity Analog Infrared CO2 Sensor (0~5000ppm).

Features

High sensitivity High resolution

Low power consumption

Excellent stability

Temperature compensation

Excellent linear output

High cycle life

Anti-water vapor interference

No poisoning

Need 5V power supply, even you are using a 3.3V microcontroller, like Genuino 101/ Raspberry Pi .etc.

Specification

Gas Detection: Carbon Dioxide (CO2)

Operating Voltage: 4.5 ~ 5.5V DC

Average Current: <85mA

Output Signal: UART/PWM/Analog output (the last two has not been developed)

Measuring Range: 0 ~ 50000ppm

Accuracy: ± (50ppm + 5% reading)

Preheating Time: 3min

Response Time: T90 < 30s

Operating Temperature: 0 ~ 50°C

Operating Humidity: 0 ~ 95% RH (no condensation)

Service Life: >5 years

Board Dimension : 21 * 27.11 mm/ 0.83 * 1.06 inches

Weight: 42g

Documents

Product wiki

Parts List

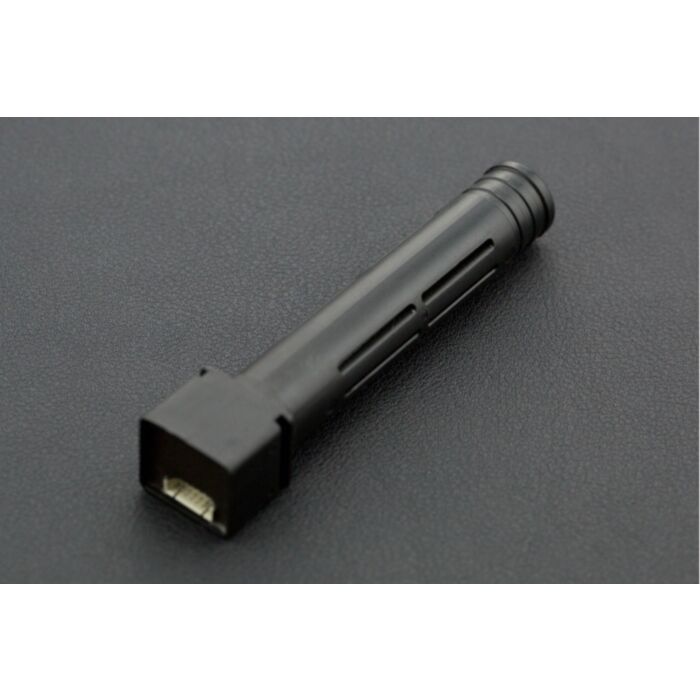

UART Infrared CO2 Sensor Probe (0-50000ppm) x1

Sensor Converter Board x1

6-Pin Sensor Cable x1

PH2.0 Gravity UART Cable x1

XH2.54 4-Pin header x1
