ERASynth Micro

SKU: CE07317 Brand: Maker Community

Retired Product

Replaced by: Audio

This product has been replaced by: Audio
This product is no longer available. This page is only for reference.

The Best Open Source RF Signal Generator Just Got Better

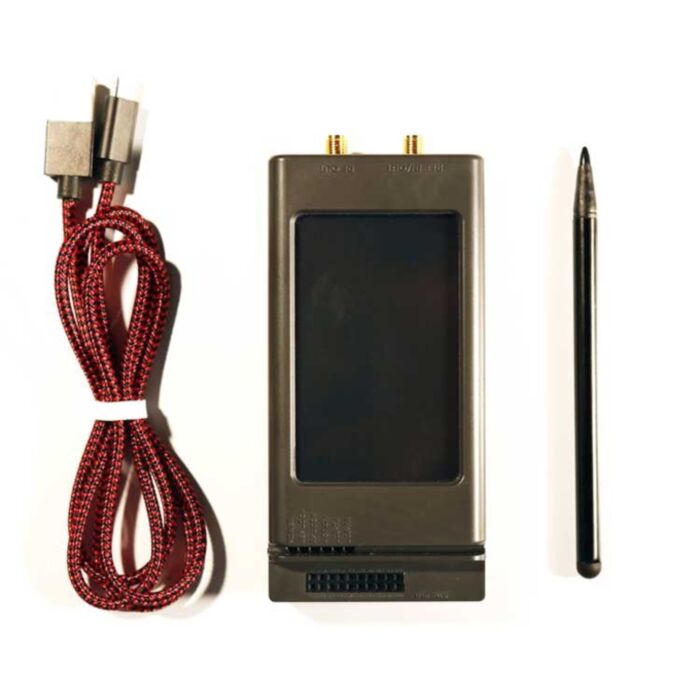

ERASynth Micro is an open source signal generator with impressive features. Everyone can afford it, including makers, hackers, students, ham radio and SDR users. ERASynth Micro can be powered from a USB port and features an LCD interface for standalone use without a computer or phone. It can generate low phase noise RF signals from 12.5 MHz to 6.4 GHz with a dual PLL architecture.

Features & Specifications

Architecture: Dual loop Fractional-N PLL
Frequency Range: 12.5 MHz to 6.4 GHz
Amplitude Range: -50 to +15 dBm
Phase Noise: -115 dBc/Hz @ 1 GHz output and 10 kHz offset
Frequency Switching Time: 1 ms (typical)
Reference: Ultra-low noise 50 MHz VCXO locked to a ±500 ppb TCXO
MCU: ATMEGA32U4 (same as in the Arduino Micro)
Interfaces:
Touch Display Module (3.2” Nextion NX4024T032)
Micro-USB for power input and serial access
REF In (SMA) for external reference input
REF Out (SMA) for 10 MHz reference output
RF Out (SMA)
Expansion connector: External trigger input, external modulation input, microphone input, GPIO (I2C), and SPI
Modulation: AM, FM, Pulse (Internal and external)
Size: 57 mm x 118 mm x 23 mm
Weight: <120 g (including the LCD screen)
Power Input: 5 V
Power Consumption: <2 W
Enclosure: Injection molded plastic case
Open Source: Schematics, embedded Arduino code, LCD screen source code, and RS-232 command set
