ENC28J60 based Ethernet Shield for Arduino

SKU: 005-K016

$20.65 AUD, inc GST
$18.78 AUD, exc GST
ENC28J60 based Ethernet Shield for Arduino

SKU: 005-K016

$20.65 AUD, inc GST
$18.78 AUD, exc GST

Retired Product

This product has been retired and kept here for reference.

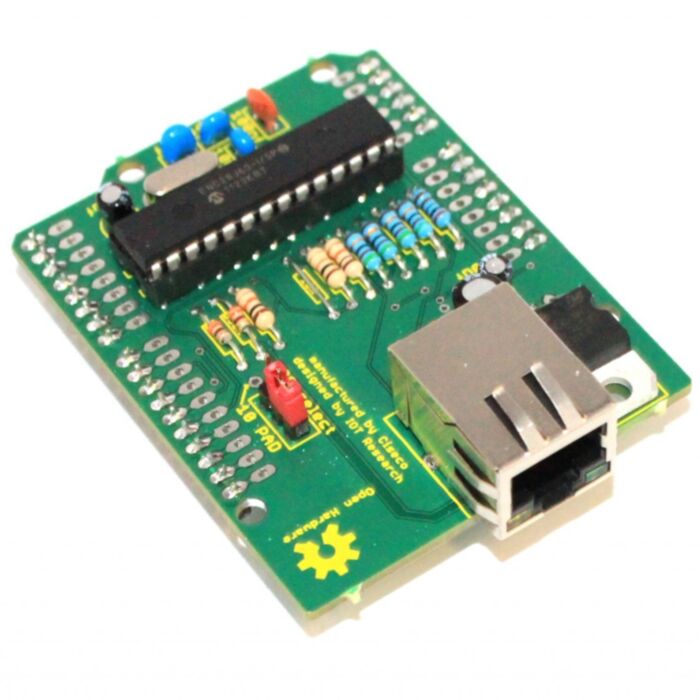

Add Ethernet connectivity to your Xino or Arduino clone with this ENC28J60 based simple through-hole kit. Supplied as a kit - see below for build instructions.

Comprising of PCB, ENC28J60, socket, Magjack, crystal, capacitors, resistors, and Arduino shiled headers.

On board jumper allows use of Digital Pin 10 for chip select, or a handy wire pad can link to any other pin for chip select.  Works with EtherCard library and Ethershield library.

Jumper select for 5v or 3v3 operation.

Supplied with pins for connection to Arduino, but can be built with through-headers (see components section), but beware of upper shields conflicting with the RJ45 socket.

Note, that if using a Nanode sketch, you should remove the “,8” in the es.ES_enc28j60Init(mymac,8); initialisation line if you are jumpered to pin 10 for your chip select, or replace it with whatever number pin you have linked to.  (Linking to pin 8 will allow you to run Nanode sketches with no modification)

Build instructions and documentation here.
