Dual-channel RS485 Expansion Hat for Raspberry Pi 4B

Skip to the beginning of the images gallery

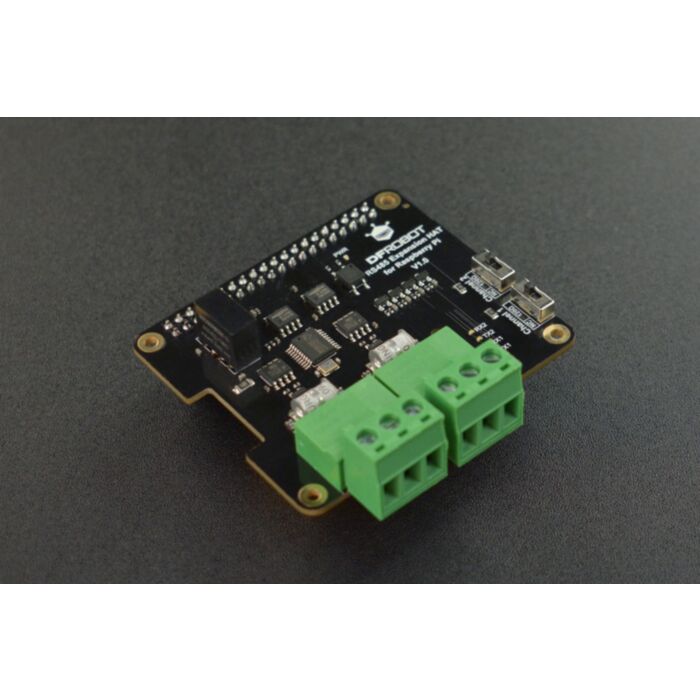

Dual-channel RS485 Expansion Hat for Raspberry Pi 4B

SKU: DFR0824 Brand: DFRobot

Want to increase reliability and anti-interference for data transmission in your industrial applications? Try the RS485 Expansion HAT for Raspberry Pi....

$49.25 AUD, inc GST

$44.77 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $43.43 (exc GST)
25+ $42.54 (exc GST)

What is RS485?

RS485 is a common serial communication standard with features such as good noise rejection, long transmission distance, and multi-drop capability. It transmits data using a differential transmission method, which allows it to suppress common-mode interference. RS485 requires a pair of twisted-pair cables and two terminal resistors to eliminate signal reflection during long-distance communication.

What is the Modbus Protocol?

Modbus is a master/slave architecture protocol used for communication between devices over RS-485. It uses unique addresses for each slave device to execute commands from a master device. Modbus commands include a check code to ensure data integrity, and can be used to change values in registers, control or read I/O ports, and retrieve data from devices.

Raspberry Pi RS485 HAT Introduction

This dual-channel RS485 expansion HAT designed for the Raspberry Pi adopts an isolated transceiver to achieve isolation for RS485, which increases the reliability and anti-interference of data transmission in each channel. And it features embedded protection circuits such as a lightning and surge protector, a TVS diode, and power supply isolation to protect the Raspberry Pi development board effectively.

Besides, the order includes a screw accessory kit that allows users to tightly fix this board onto a Raspberry Pi controller.

Wiring Diagram of RS485 Expansion HAT and Laser Ranging Sensor

Features

Dual Channel RS485

Electrical & signal isolation

Lightning & surge protection

Transient voltage suppressor

RX/TX data transmitting/receiving indicator

Applications

Agricultural Internet of Things

Warehouse Internet of Things

Indoor and Outdoor Environmental Monitoring

Lighting Control

Security Access Control System

Specification

Operating Voltage: 3.3V

RS485 Transceiver: TP75176E

Serial Chip: CH432T

RS485 Communication Interface ×2

Power Indicator: red

TX Communication Indicator: blue

RX Communication Indicator: green

120O Terminal Resistance: ×2

Wiring Method: 5.08-3P pluggable terminal block

Raspberry Pi 3B+/4B Supported

Mounting Hole Size: diameter 2.5mm

Dimension(Package Not Included): 56×65mm/2.20×2.56”

Documents

Parts List

RS485 Expansion HAT for Raspberry Pi ×1

Copper Column & Screw ×4
