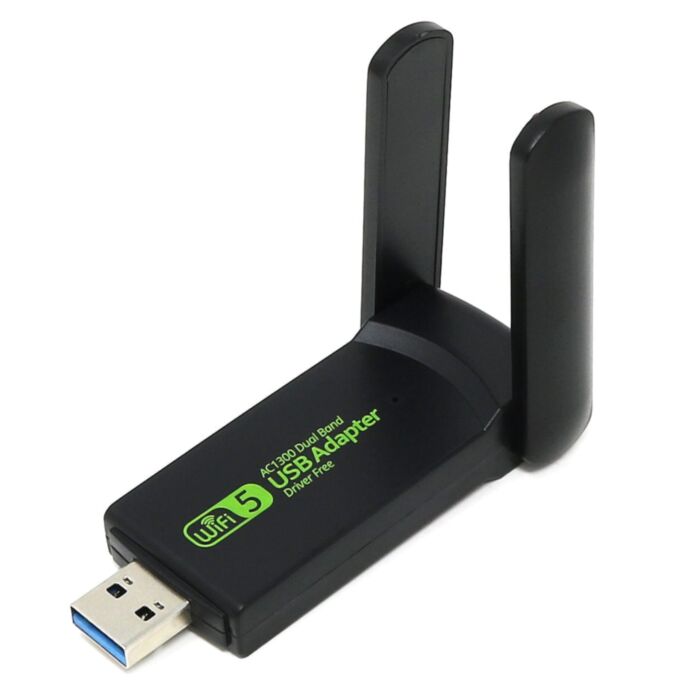

Dual-Band USB WiFi Adapter for Raspberry Pi (5GHz/2.4GHz MT7612U)

SKU: TPH-105827 Brand: The Pi Hut

This is a dual-band (5GHz/2.4GHz) 802.11 a/b/g/n/ac USB WiFi adapter for the Raspberry Pi, offering a fast secondary network option and AP mode for creating...

$33.25 AUD, inc GST

$30.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $29.32 (exc GST)
25+ $28.72 (exc GST)

This is a dual-band (5GHz/2.4GHz) 802.11 a/b/g/n/ac USB WiFi adapter for the Raspberry Pi, offering a fast secondary network option and AP mode for creating your own network with your Raspberry Pi!

After experiencing some driver issues with our previous Realtek RTL8811cu USB adapters, we spend a lot of time testing different USB adapters and chipsets to find a reliable option that works with the Raspberry Pi without the need for 3rd-party drivers - and this is it!

This USB 3.0 dual-band USB WiFi adapter uses the MT7612U chipset, which has drivers included in Raspberry Pi OS along with a reputation of working very well with the Raspberry Pi. Use it with the USB 3.0 ports on your Raspberry Pi for the best performance.

We've found it ever-so-slightly outperforms the onboard WiFi on Raspberry Pi 5 in terms of range, and it's ideal for setting up your own network (AP mode) -which can easily be achieved via the Raspberry Pi OS GUI (super-simple guide coming soon - it's easier than ever!).

Works plug n' play with every model of Raspberry Pi (those with a full-size USB port).

Raspberry Pi not included.

Installation

Just pop the adapter into a USB port on your Raspberry Pi (ideally USB 3.0) and the built-in drivers in Raspberry Pi OS should pick up the adapter immediately. Select the WiFi icon on your Raspberry Pi and you'll now see two WiFi interfaces available! If you're using an older Raspberry Pi 2 (or earlier) without built-in WiFi, you'll just see the one interface.

Features

Dual-band USB WiFi adapter for Raspberry Pi
2.4GHZ / 5GHz bands
Compatible with all versions of Raspberry Pi (with full-size USB ports) when using the latest Raspberry Pi OS
Plug n' Play
MT7612U chipset
USB 3.0 (backwards compatible with USB 2.0 on older Raspberry Pi boards)
Drivers built-in to Raspberry Pi OS (support with other OS options may vary)
Supports AP mode
Adjustable antennas

Specification

Standard: IEEE 802.11 a/b/g/n/ac
Frequency range: 2.412 ~ 2.4835 GHz / 5.12 ~ 5.825GHz
Wireless Speed: AC1300 (host device dependant!)
- 5GHz - up to 867Mbps
- 2.4GHz - up to 400Mbps
Working channels:
- 5GHz - 36-165
- 2.4GHz - 1-14
Spread spectrum: DSSS
Modulation type: OFDM/CCK/16-QAM/64-QAM
Transmit power: 20dBm
Operating temperature: -20°C to 70°C, Storage: -40°C to 90°C

Resources

Coming soon! (the drivers are cooked in to Raspberry Pi OS)

Package Contents

1x Dual-band USB WiFi adapter

Raspberry Pi not included
