DRV8434S SPI Stepper Motor Driver Carrier, Potentiometer for Max. Current Limit (Header Pins Soldered)

SKU: POLOLU-3767 Brand: Pololu

This version of our DRV8434S SPI Stepper Motor Driver Carrier, Potentiometer for Max. Current Limit ships with male header pins installed, so no soldering...

$24.25 AUD, inc GST

$22.05 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $21.16 (exc GST)
25+ $20.50 (exc GST)

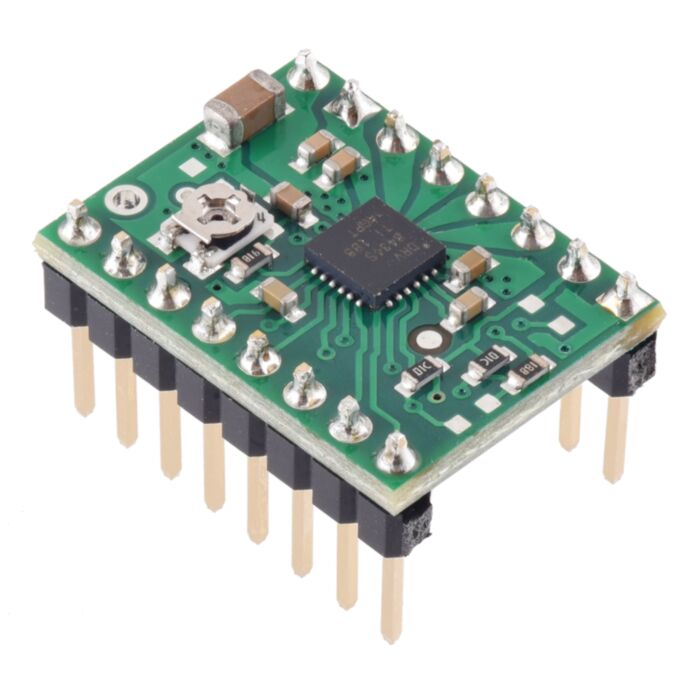

This version of Pololu's DRV8434S SPI Stepper Motor Driver Carrier, Potentiometer for Max. Current Limit ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the DRV8434S SPI Stepper Motor Driver Carrier, Potentiometer for Max. Current Limit product page for more information about the driver.

Dimensions

Size:	0.6" × 0.8"
Weight:	2.4 g

General specifications

Minimum operating voltage:	4.5 V¹
Maximum operating voltage:	48 V²
Continuous current per phase:	1.2 A³
Maximum current per phase:	2 A⁴
Minimum logic voltage:	1.8 V⁵
Maximum logic voltage:	5.5 V⁶
Microstep resolutions:	full with 100% current, full with 70% current, non-circular 1/2, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
Current limit control:	potentiometer for max with SPI scaling
Reverse voltage protection?:	N
Header pins soldered?:	Y

Identifying markings

PCB dev codes:	md43b
Other PCB markings:	0J13692

Notes:

1: Inputs below 6 V reduce the maximum settable current limit. With 4.5 V in the maximum settable limit is 1.75 A.
2: Not intended for use with 48V batteries, which can be well above nominal when fully charged.
3: Without a heat sink or forced air flow.
4: With sufficient additional cooling.
5: Logic high threshold varies for two-state, tri-state, and quad-state pins. See datasheet for details.
6: Absolute maximum voltage on any input is 5.75 V.

File downloads

Schematic diagram for the DRV8434S SPI Stepper Motor Driver Carrier (101k pdf)
Dimension diagram of the DRV8434x Stepper Motor Driver Carriers (2MB pdf)
Drill guides (DXF) for the DRV8434x Stepper Motor Driver Carriers (3k zip)

These DXF drawings show the locations of all of the holes on the DRV8434x Stepper Motor Driver Carriers.
3D models (STEP) of the DRV8434x Stepper Motor Driver Carriers (3MB zip)

This file contains 3D models (in the step file format) of the DRV8434x Stepper Motor Driver Carriers.

Recommended links

Texas Instruments DRV8434S stepper motor driver datasheet
Video: setting the current limit on Pololu stepper motor driver carriers
Texas Instruments product page for the DRV8434S stepper motor driver

Texas Instruments product page for the DRV8434S, where you can find the latest datasheet and additional resources.
Arduino library for the Pololu DRV8434S SPI stepper motor driver carrier

This is a library for Arduino that helps interface with a DRV8434S stepper motor driver. It uses the Arduino SPI library to communicate with the SPI interface (nSCS, SCLK, SDI, and SDO) of the DRV8434S.
