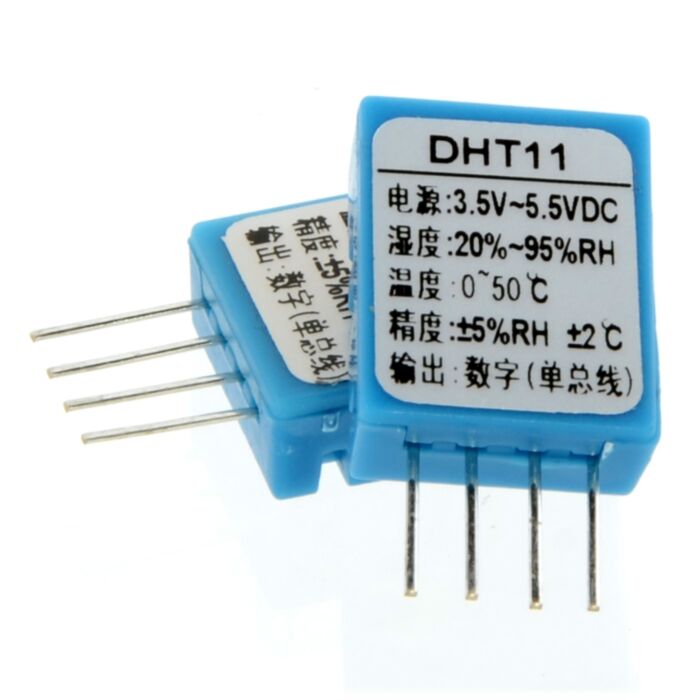

Digital Humidity Temperature Sensor 2pcs - DHT11

SKU: 017-MB-SM24115

$7.65 AUD, inc GST
$6.96 AUD, exc GST

More Views

Digital Humidity Temperature Sensor 2pcs - DHT11

SKU: 017-MB-SM24115

$7.65 AUD, inc GST
$6.96 AUD, exc GST
1 reviews 0 5 4

Retired Product

This product has been retired and kept here for reference.

This is a low cost humidity and temperature sensor with a single wire digital interface. The sensor is calibrated and doesn't require extra components so you can get right to measuring relative humidity and temperature. DHT11 output calibrated digital signal. It utilizes exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability. Its sensing elements is connected with 8-bit single-chip computer. Every sensor of this model is calibrated in accurate calibration chamber and the calibration-coefficient is saved in type of programme in OTP memory, when the sensor is detecting, it will cite coefficient from memory.

Features:

  • Relative humidity and temperature measurement
  • Extra components are not needed
  • Long transmission distance low power consumption
  • Dimensions: 12 X 15.5 X 15mm
  • Outstanding long-term stability and reliability
  • Low power consumption

Specification:

  • Power supply: 3.0 to 5.5V DC
  • Output signal: digital signal via single-bus
  • Operating range: humidity 20 to 90%RH, temperature 0 to 50℃
  • Interchangeability: fully interchangeable
  • Range of meauring humidity: 20% to 90%RH(0-50℃temperature compensation)
  • Range of meauring temperature: 0 to +50℃
  • Accuracy of measuring humidity: ±5.0%RH
  • Accuracy of measuring temperature: ±2.0℃
  • Response time: <5s
  • Supply Current:
    Mesurement: 0.5 to 2.5 mA
    Average: 0.2 to 0.5 mA
    Stand by: 100 to 150 uA

Downloads:

This product is listed in:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Nathan verified purchaser
    Rating
    80

    They're known to be fairly basic, but the 1 or 2 second max polling frequency wasn't as much a problem as the slow response to changes in either temp or humidity.. Something in the order of a minute to come back to normal after making deliberate changes to test. (The DS18B20 (digital) for example is almost immediate)

    Anyway, probably totally fine for just logging conditions day to day or something similar, but I'll probably look at some others for any control applications (Posted on 19/08/2016)
