These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

This gearmotor is a powerful brushed DC motor with 150:1 metal gearbox intended for operation at 12 V. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

Tamiya’s double gearbox packs two independent gear trains into a compact and affordable package that is great for small mobile robots. Each side can be assembled to have one of four gear ratios: 12.7:1, 38:1, 115:1, or 344:1.

Tamiya’s 3-speed crank-axle gearbox looks very much like half of the twin-motor gearbox (with an added gear ratio option). This compact gearbox can be built in one of three gear ratios (17:1, 58:1, and 204:1), and is Tamiya’s cheapest, general-purpose gearbox.

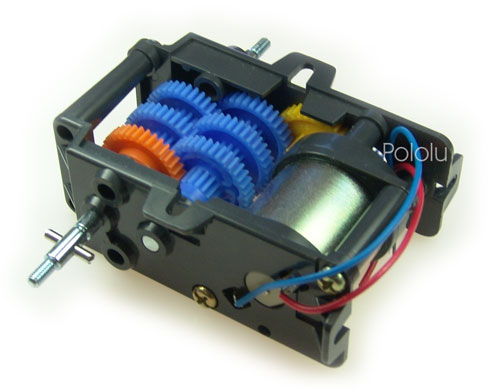

This versatile, high-efficiency gearbox lets you build one of the following gear ratios: 11.6:1, 29.8:1, 76.5:1, 196.7:1, 505.9:1, and 1300.9:1. Whatever your application, chances are that one of the configurations will do the job.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 12V brushed DC motor with long-life carbon brushes...

This cylindrical, 2.28" x 0.98" x 0.98" brushed DC gearmotor with a 498.87:1 metal gearbox is a lower-current , lower-speed alternative to Pololu's 25D mm HP gearmotors. These units have a 0.315"-long, 4 mm-diameter D-shaped output shaft. Key specs at 6 V: 12 RPM and 80 mA free-run, 300 oz-in (21.6 kg-cm) and 2.2 A stall. (Note: stall torque and current specifications are theoretical values; stalling the motor is likely to damage the gearbox.)

This gearmotor is a miniature low-power, 6 V brushed DC motor with a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of...

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 12V brushed DC motor with long-life carbon brushes...

This gearmotor is a powerful brushed DC motor with 10:1 metal gearbox intended for operation at 12 V. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

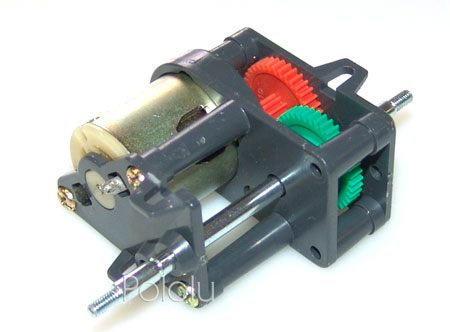

The high-speed gearbox can be assembled in 11.6:1 and 18:1 gear ratios. This high-efficiency gearbox is therefore suited for very fast vehicles or other fast mechanisms that do not require high torque.

Unlike the other gearboxes in Tamiya’s series, the universal gearbox has a thin metal frame, making it the smallest Tamiya gearbox. The final two gears are metal, making for a tough output. A worm gear allows for the high gear ratio options of 101:1, 269:1, and 719:1.

Tamiya’s twin-motor gearbox consists of two independent brushed DC motors and gearboxes in one compact housing, making it perfect for small robots. You can assemble the gearboxes to have a 58:1 or a 204:1 gear ratio.

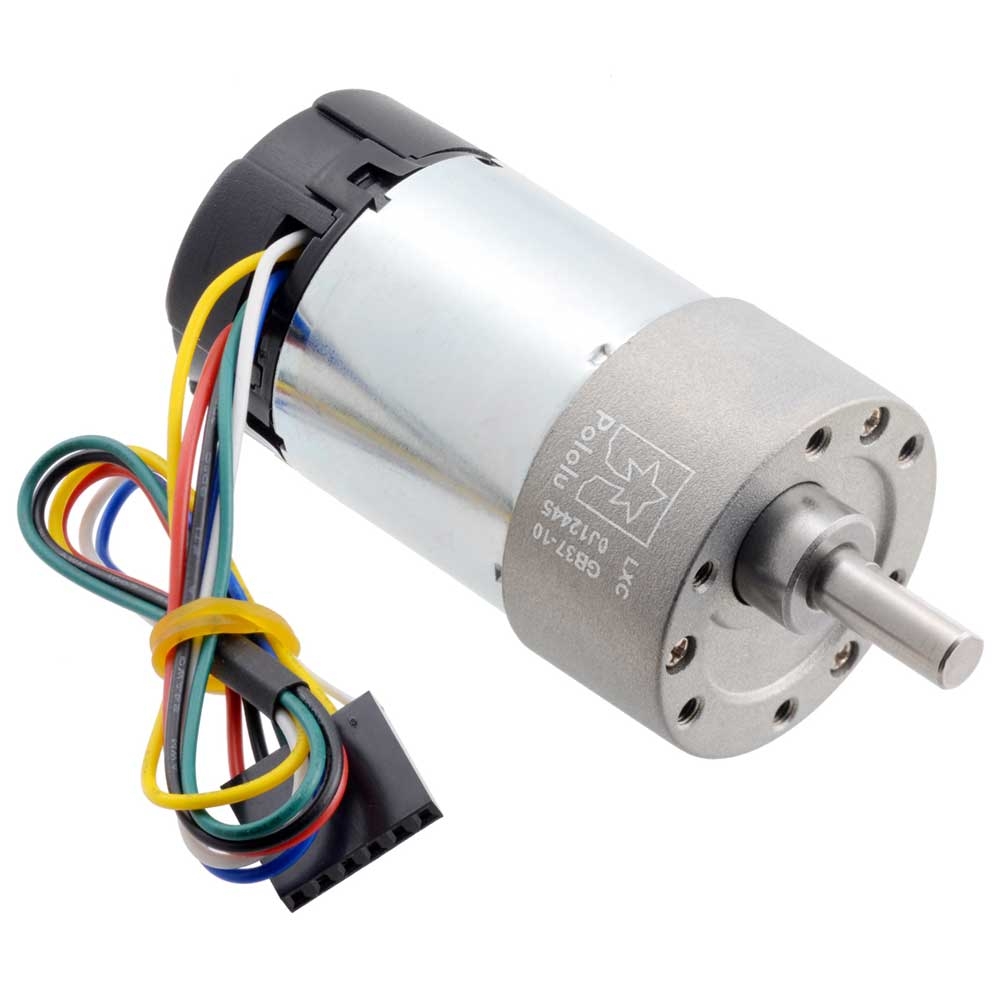

This gearmotor is a powerful 24V brushed DC motor with a 10:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 640 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.

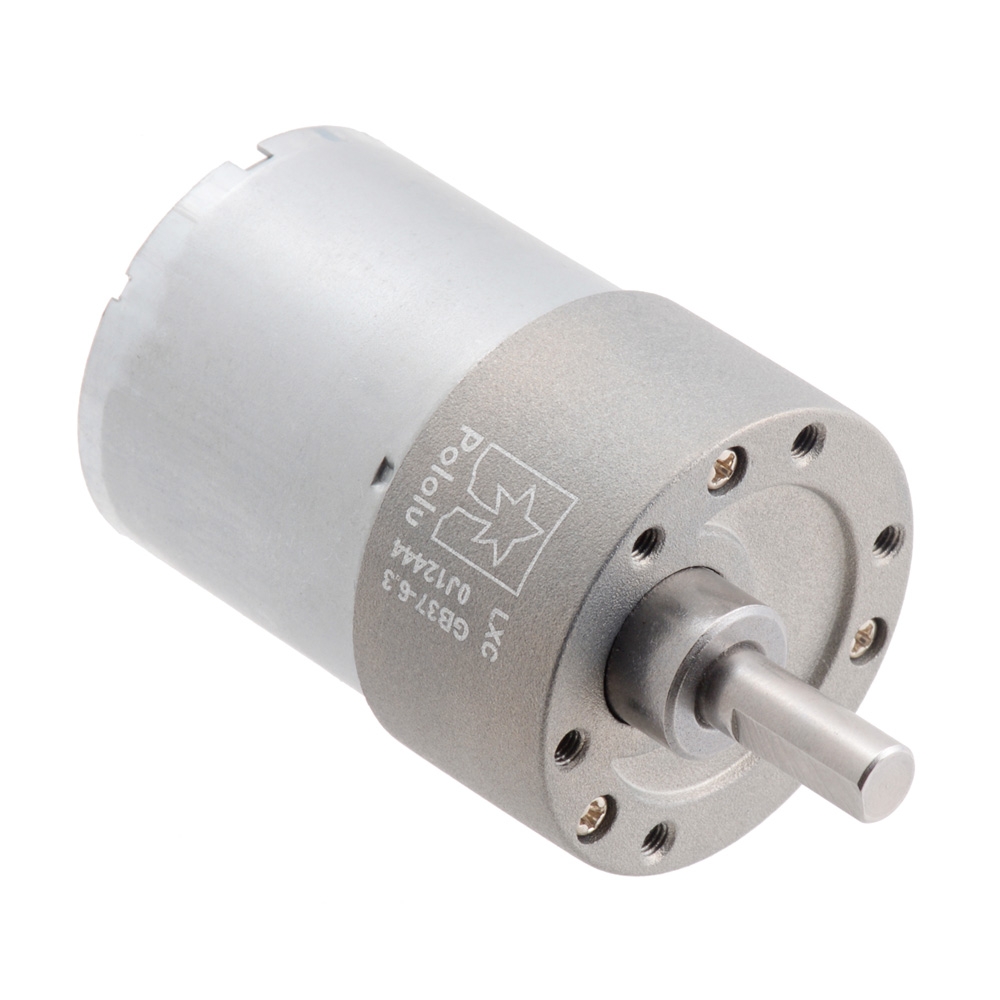

This gearmotor is a powerful brushed DC motor with 6.25:1 metal gearbox intended for operation at 24 V. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.

This gearmotor is a powerful 12V brushed DC motor with a 30:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 1920 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.

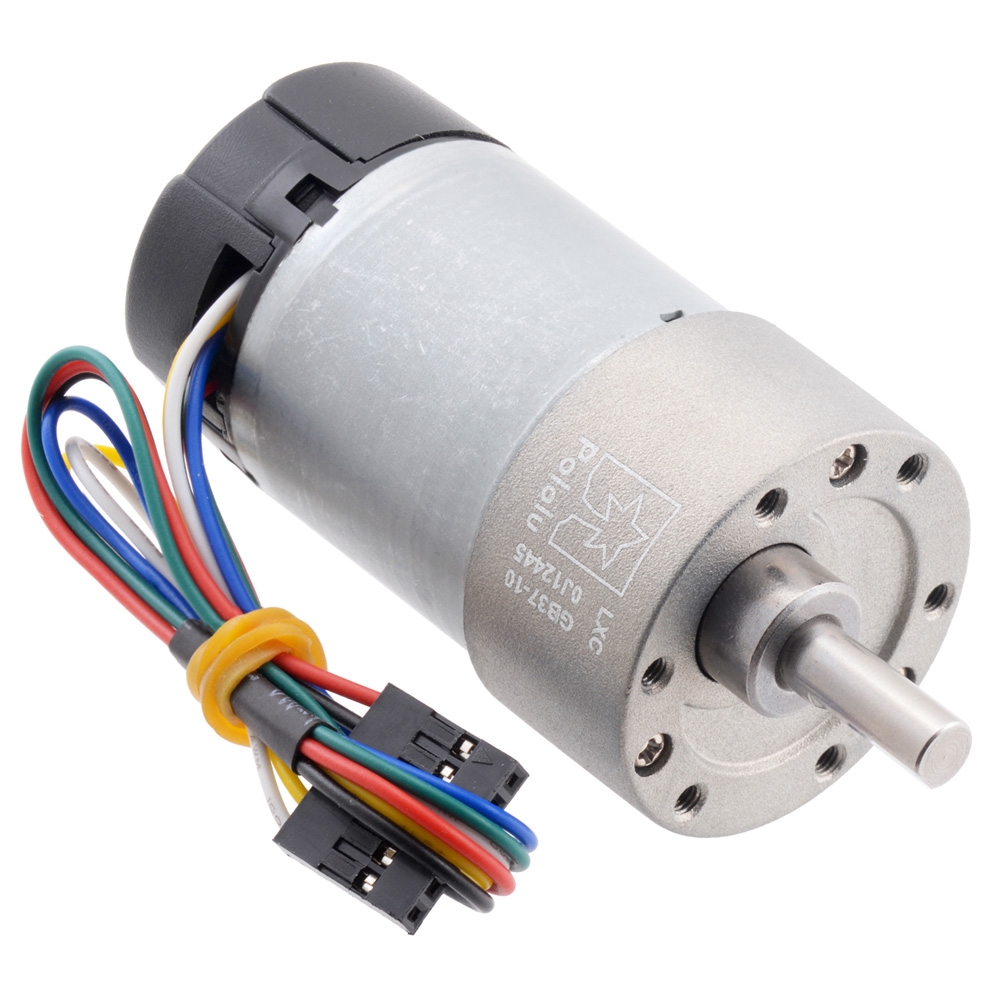

This gearmotor is a powerful 12V brushed DC motor with a 10:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 640 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor combined with a 78.13:1 metal spur...

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

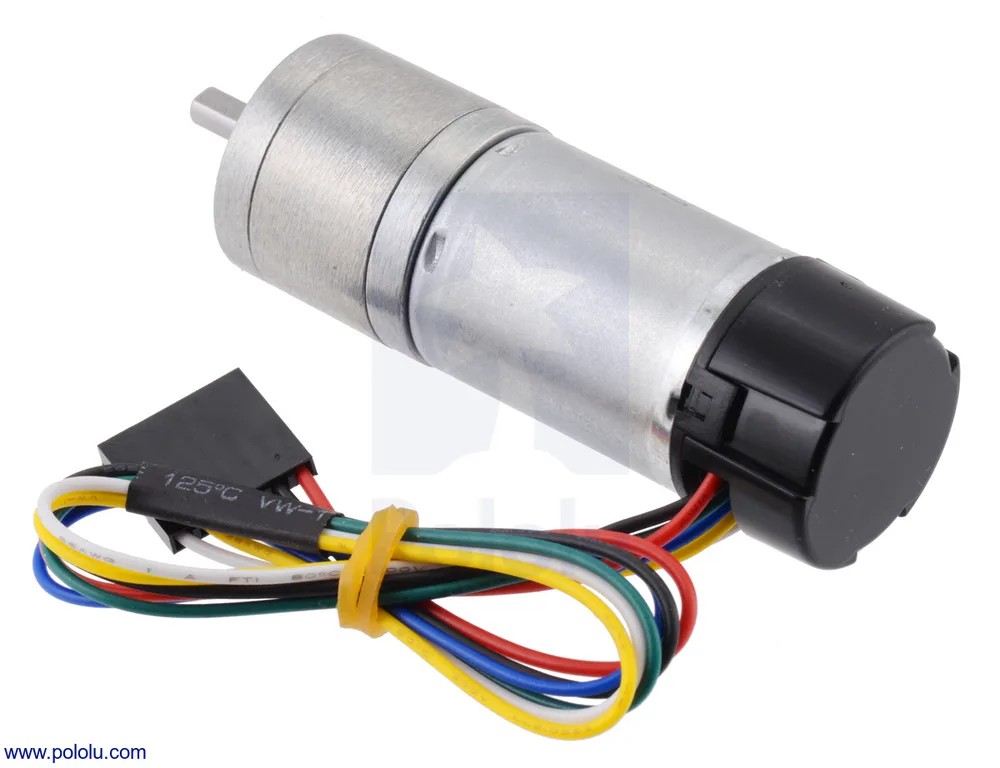

A compact 24 V brushed DC gearmotor with a 20.4:1 metal gearbox and integrated 48 CPR quadrature encoder for speed and direction feedback.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

This gearmotor is a powerful 24V brushed DC motor with a 18.75:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 1200 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...

This cylindrical, 2.2" x 0.98" x 0.98" gearmotor uses a brushed DC motor with extra-strong magnets and a 171.79:1 metal gearbox to deliver a lot of power in a relatively small package. These units have a 0.315"-long, 4 mm-diameter D-shaped output shaft. Pololu also carry a lower-power version of this gearmotor. Key specs at 6 V: 57 RPM and 450 mA free-run, 260 oz-in (18.7 kg-cm) and 6 A stall. (Note: stall torque and current specifications are theoretical values; stalling the motor is likely to damage the gearbox.)

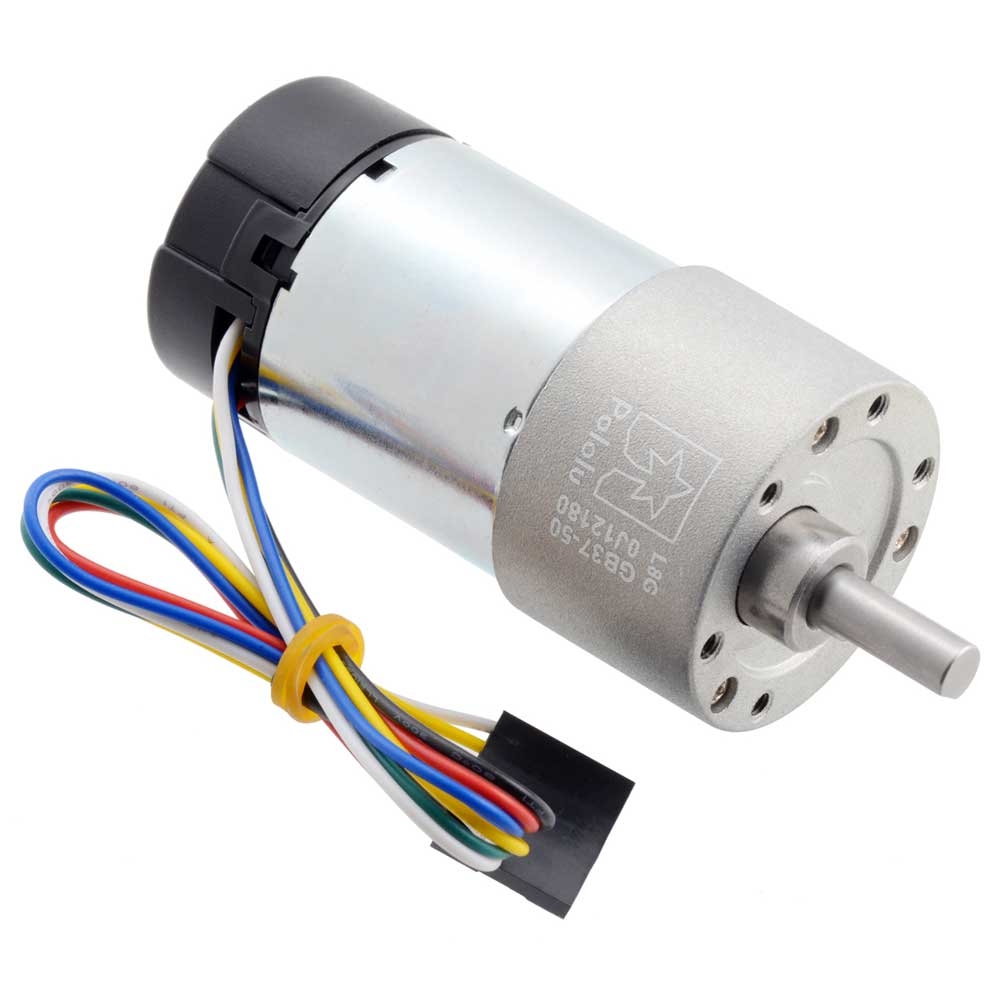

This gearmotor is a powerful 24V brushed DC motor with a 50:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 3200 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor with long-life carbon brushes combined...
