Search results for: '24v voltage regulator'

*Actual achievable maximum continuous current is a function of input voltage and is limited by thermal dissipation. See the output current graphs on the...

This powerful boost regulator efficiently generates an output voltage of 24 V from an input voltage as low as 2.9 V while allowing an input current as high as 5 A.

Note 1: Typical continuous output current at 42 V in. Actual achievable continuous output current is a function of input voltage and is limited by thermal...

This powerful step-up/step-down regulator efficiently produces a fixed 24 V output from input voltages between 3 V and 30 V while allowing a typical output current of up to 2 A when the input voltage is close to the output voltage and offering typical efficiencies of 80% to 90%.

The D42V110Fx family of synchronous buck (step-down) voltage regulators generates lower output voltages from input voltages as high as 60 V.

24V DC 2A switch mode plug pack...

Super-compact regulated power supply. Supplied with 2.1mm DC jack. Output - 24V DC @ 5A

Super-compact regulated power supply. Supplied with 2.1mm DC jack. Output - 24V DC @ 3.75A

This is a waterproof DC-DC converter. With 8-18V DC input, it converts to 24V@10A which is an ideal supply for robots.

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types.

This 6A BEC / Voltage Regulator reduces input voltage down to one of four selectable output voltages. Its screw terminals accept 14-26AWG.....

This sensor is a carrier/breakout board for ST’s VL53L0X laser-ranging sensor, which measures the range to a target object up to 2 m away. The VL53L0X...

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This powerful synchronous switching boost regulator efficiently generates an output voltage of 15 V from an input voltage as low as 2.9 V while using an...

This sensor is a carrier/breakout board for ST’s VL53L5CX laser-ranging sensor, which offers fast and accurate ranging up to 4 m through a digital I²C...

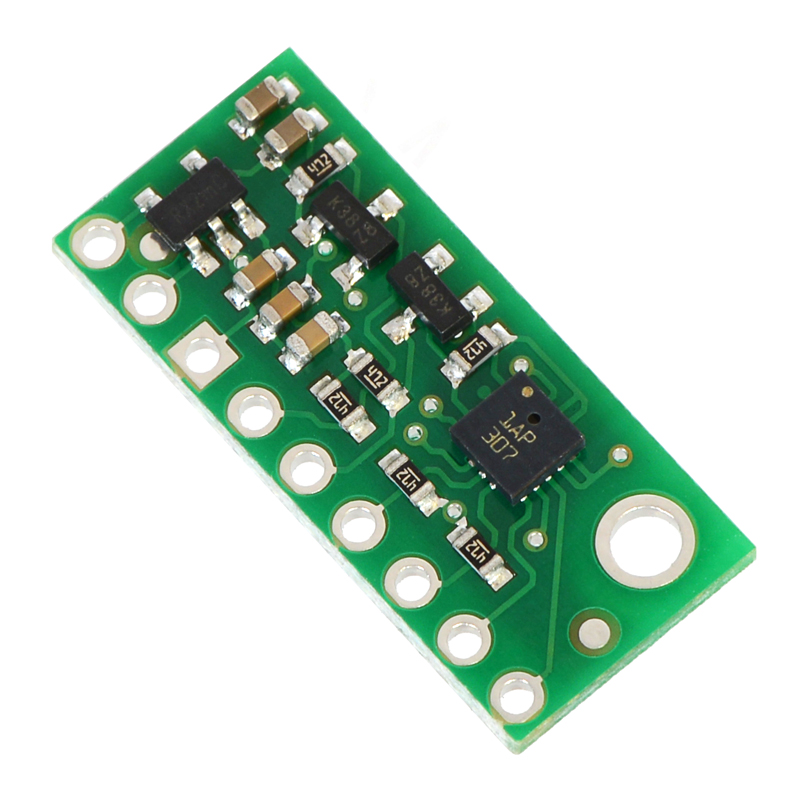

This carrier for ST’s LPS331AP digital barometer measures pressures from 260 mbar to 1260 mbar (26 kPa to 126 kPa) with absolute pressure accuracy over temperature down to ±2 mbar (0.2 kPa) and typical RMS noise of 0.02 mbar (0.002 kPa) in high-resolution mode. These pressures can easily be converted to altitudes. The board has a 3.3 V linear regulator and integrated level shifters that allow it to work over an input voltage range of 2.5 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards. The sensor offers I²C and SPI interfaces.

This powerful synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 5 V.

This synchronous switching step-up/step-down regulator efficiently produces 7.5 V from input voltages between 2.8 V and 22 V. Its ability to convert both...

The compact (0.4″ × 0.5″) D24V3F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 300 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The compact (0.4″ × 0.5″) D24V3F9 switching step-down (or buck) voltage regulator takes an input voltage between 11 V and 42 V and efficiently reduces it to 9 V while allowing for a maximum output current of 300 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The S7V8F5 switching step-up/step-down regulator efficiently produces a fixed 5 V output from input voltages between 2.7 V and 11.8 V. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below the regulated voltage. The compact (0.45″ × 0.65″) module has a typical efficiency of over 90% and can deliver 500 mA to 1 A across most of the input voltage range.

This sensor is a carrier/breakout board for the ST L3GD20H three-axis gyroscope, which measures the angular rates of rotation about the roll (X), pitch (Y), and yaw (Z) axes. Angular velocity measurements with a configurable range of ±245°/s, ±500°/s, or ±2000°/s can be read through a digital I²C or SPI interface. The board has a 3.3 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.5 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

This tiny (0.35″×0.45″) U1V10F5 switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V10F5 automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

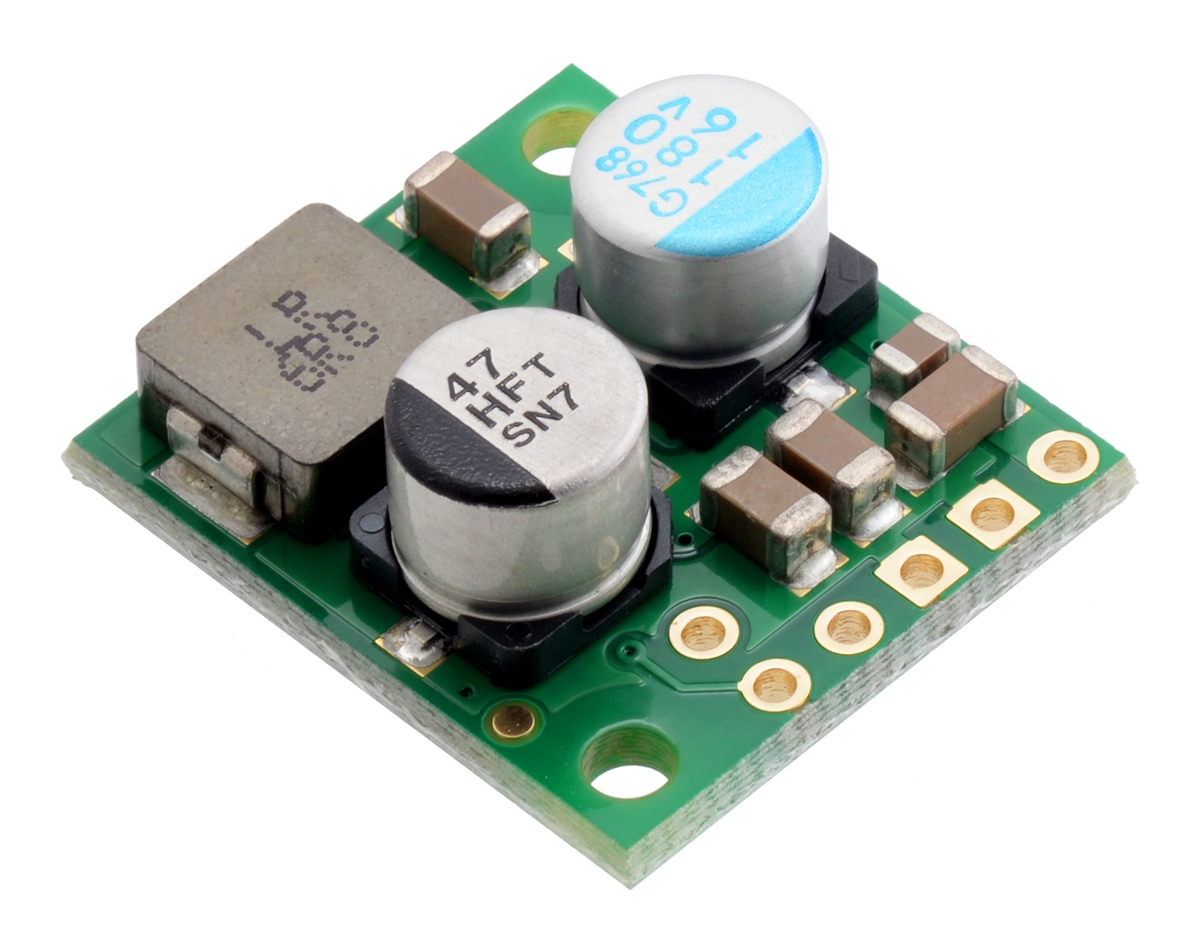

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.8″, but it allows a typical continuous output current of up to 5 A. Typical efficiencies of 85% to 95% make this regulator well suited for high-power applications like powering motors or servos. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages between 4 V and 50 V and efficiently reduces them to 3.3 V...

This compact (0.32"×0.515") switching step-up (or boost) voltage regulator efficiently generates 12 V from input voltages as low as 1.3 V and handles...

This compact (0.45″×0.6″) U1V11F3 switching step-up (or boost) voltage regulator efficiently generates 3.3 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V11F3 offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The S7V7F5 switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.7 V and 11.8 V. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below 5 V. The very compact (0.35″ × 0.475″) module has a typical efficiency of over 90% and can supply up to 1 A when stepping down and about 500 mA when stepping up.

This compact (0.45″×0.6″) U1V11F5 switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 0.5 V. Unlike most boost regulators, the U1V11F5 offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages between 4 V and 50 V and efficiently reduces them to a...

This compact (0.6"×0.6") switching step-up (or boost) voltage regulator efficiently generates 9 V from input voltages as low as 1.3 V and handles...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 6 V. The board measures...

This powerful synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 12 V. The board...

This sensor is a carrier/breakout board for ST’s VL53L7CX laser-ranging sensor, which offers fast and accurate ranging up to 3.5 m through a digital I²C...

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages up to 50 V and efficiently reduces them to 6 V while...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 9 V. The board measures...

1 Typical continuous output current at 30 V in and 9 V out. Actual achievable continuous output current is a function of input and output voltages and is...
