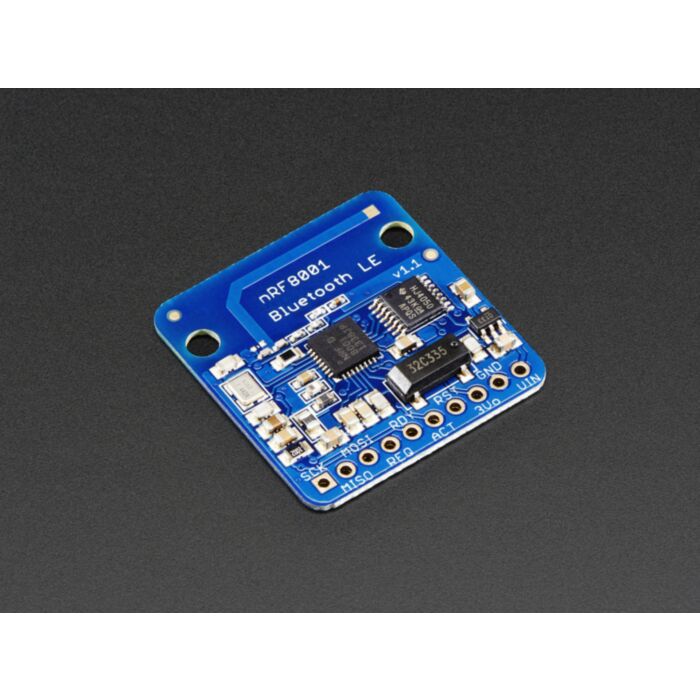

Bluefruit LE - Bluetooth Low Energy (BLE 4.0) - nRF8001 Breakout - v1.0

SKU: ADA1697 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Adafruit's Adafruit Bluefruit LE (Bluetooth Smart, Bluetooth Low Energy, Bluetooth 4.0) nRF8001 Breakout allows you to establish an easy to use wireless link between your Arduino and any compatible iOS or Android (4.3+) device. It works by simulating a UART device beneath the surface, sending ASCII data back and forth between the devices, letting you decide what data to send and what to do with it on either end of the connection.

Unlike classic Bluetooth, BLE has no big contracts to sign and no major hoops that you have to jump through to create iOS peripherals that you can legally design and distribute in the App Store, which makes it a great choice compared to classic Bluetooth which had (and still has) a lot of restrictions around it on the iOS platform.

And now that Android also officially supports Bluetooth Low Energy (as of Android 4.3), it's also -- finally! -- a universal communication channel covering the main mobile operating systems people are using today.

Please note! Adafruit still manufacture and support the nRF8001 Bluefruit module sold here, but Adafruit really recommend going with the fresh new Bluefruit LE nRF51822 based modules, they're much more powerful and thus need less code on the Arduino side, have a lot more capability and flexibility so you can do more, require fewer pins, are overall smaller, can be updated with new firmware and are FCC/CE approved! They come in both UART and SPI interface type (both have same functionality, one just uses serial, one uses SPI)

Adafruit can get you started super fast with this BLE module which can act like an 'every day' UART data link (with an RX and TX characteristic). Send and receive data up to 10 meters away, from your Arduino to an iOS device. Adafruit have even made it easy to get started with Adafruit's very own BLE connect app that has a "serial console" for sending/receiving data and also an 'arduino pin i/o control station" to let you set pins on your Arduino to inputs or outputs, high or low logic or even PWM output, as well as read button presses and analog inputs. You can start prototyping your accessory and then use Adafruit's open source Objective C code to base your new app on!

The nRF8001 is nice in that it is just a BLE 'peripheral' (client) front-end, so you can use any micrcontroller with SPI to drive it. Adafruit have example C++ code for Arduino, which you can port to any other microcontroller, but some microcontroller is required - it is not a stand-alone module!

This is a product for ADVANCED USERS - At this time Adafruit recommend this product for people who are either OK with using the apps available (Nordic's UART demo or Adafruit's Bluefruit LE Connect) or are comfortable with writing iOS apps (and can refer to Adafruit's App repository). We do not have a tutorial for writing your own iOS or Android BLE app at this time, don't worry Adafruit are working on one :)

Adafruit have a guide to help you setup your nRF8001 Bluetooth Low Energy breakout, and start using some of the sample sketches Adafruit provide with it to connect to an iOS or Android device.

They also now have an app for Android users available here!

If you're new to Bluetooth Low Energy, be sure to check out Adafruit's Introduction to Bluetooth Low Energy learning guide as well!

Technical Details

Dimensions: 29mm x 28mm / 1.14" x 1.10"
.8mm thick / .03"
Weight: 1.8g

Revision history:

7/17/2014 - Adafruit updated the layout and changed out the 32KHz crystal. The board is functionally the same but a little thicker.

EagleCAD PCB files, Fritzing object, Datasheets and more in the tutorial
