Bi-Color (Red/Green) 24-Bar Bargraph w/I2C Backpack Kit

SKU: ADA1721 Brand: Adafruit
What's better than a single LED? Lots of LEDs! A fun way to make a small linear display is to use two 12-bar Bi-color bar-graphs. However, this LED bargraph is 'multiplexed'...
$20.20 AUD, inc GST
$18.36 AUD, exc GST

Quantity Discounts:

  • 10-25 $17.63 (exc GST)
  • 25+ $17.08 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

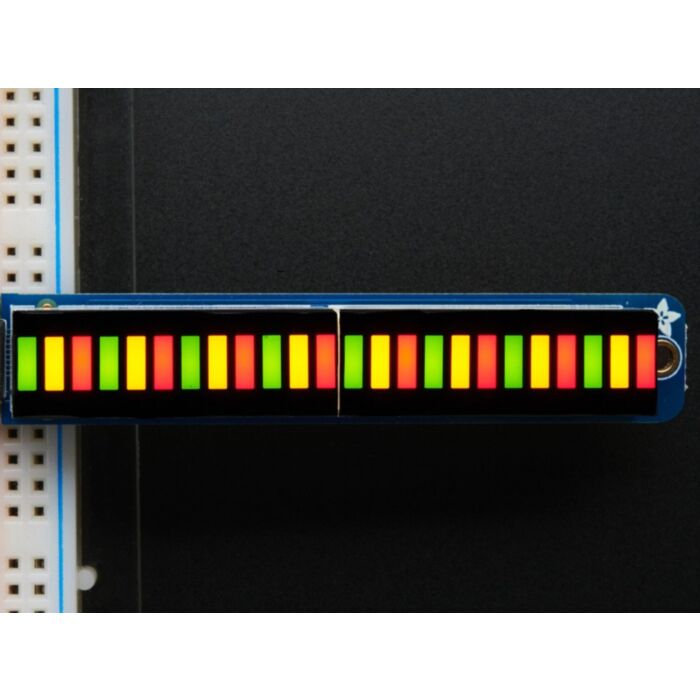

What's better than a single LED? Lots of LEDs! A fun way to make a small linear display is to use two 12-bar Bi-color bar-graphs. However, this LED bargraph is 'multiplexed' - so to control all the 48 LEDs you need a lot of pins. There are driver chips like the MAX7219 that can help control a bar-graph/matrix for you but there's a lot of wiring to set up and they take up a ton of space. Here at Adafruit Adafruit feel your pain! After all, wouldn't it be awesome if you could control a colorful bargraph without tons of wiring? That's where this adorable LED bar-graph backpack comes in. Much like Adafruit's 8x8 and 7-segment backpacks, this backpack pairs perfectly with Adafruit's bar-graphs and manages all the LED control and multiplexing.

The backpack uses a driver chip that does all the heavy lifting for you: It has a built in clock so it can multiplex the display. It uses constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface. The backpack comes with address-selection jumpers so you can connect up to eight of these bar-graphs on a single I2C bus. You can also mix-and-match the bar-graph breakout with Adafruit's other types of I2C LED backpacks.

The product kit comes with:

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.

Of course, in classic Adafruit fashion, We also have a detailed tutorial showing you how to solder, wire and control the display. They even wrote a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment. If you've been eyeing matrix displays but hesitated because of the complexity, his is the solution you've been looking for!
